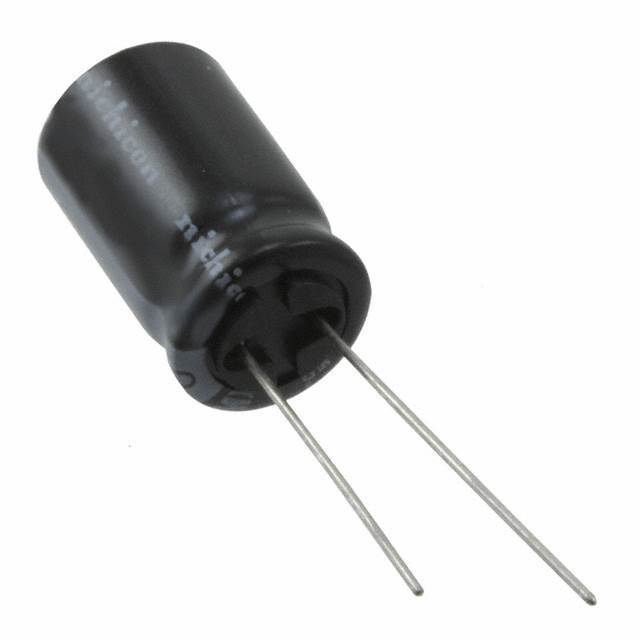

UVZ1H222MHD
2200 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - 1000 Hrs @ 105°C
Availability: In Stock
Package Type: RADIAL
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the UVZ1H222MHD by Nichicon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the UVZ1H222MHD
| Part Name | UVZ1H222MHD |
| Manufacturer | Nichicon |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diameter | 16 (mm) |
| Ripple Current (A) | 1.47 (A) |
| Dimensions | 16 (Dia.) x 35.5 (mm) |
| Mounting Type | Radial, Through Hole |
| Series | VZ |
| Height | 35.5 (mm) |
| Capacitance | 2200 (µF) |
| Tolerance | ±20 (%) |
| Voltage (V) | 50 (V dc) |
| Leakage Current (A) | 3300 μA |
| Lifetime | 1000 (h) |
| Lead Pitch | 7.5 (mm) |
| Maximum Operating Temperature | +105 (°C) |
| Minimum Operating Temperature | -55 (°C) |
| Technology | Aluminium Electrolytic |
Inventory for the UVZ1H222MHD by Nichicon from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
6,383
|
|
Visit Site | |
|
★ Featured
|
3,220
|
|
Visit Site | |
| Arrow Electronics |
17
|
|
Visit Site | |
| Newark |
189
|
|
Visit Site | |
| RS UK |
315
|
|
Visit Site | |
| TTI Americas |
14,600
|
50 x $0.88
|
Visit Site | |
| Verical |
517
|
2 x $1.23
|
Visit Site |
No issues have been reported for the UVZ1H222MHD
