V78E03-500-SMT-TR
SnapVerified
500 mA Output Current, 4.75~36 Vdc Input, SMT, Non-Isolated, Dc-Dc Converter
Availability: Out of Stock
Package Type: SMD-10
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the V78E03-500-SMT-TR by CUI Inc. and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

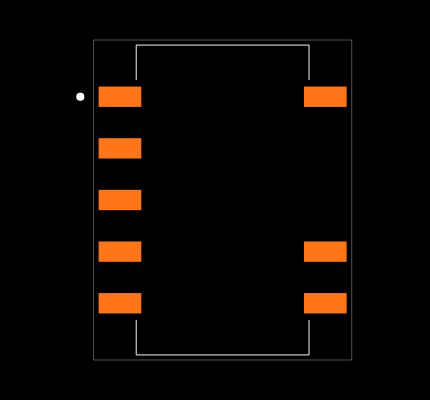

Footprint
No web preview
This Footprint is Available for

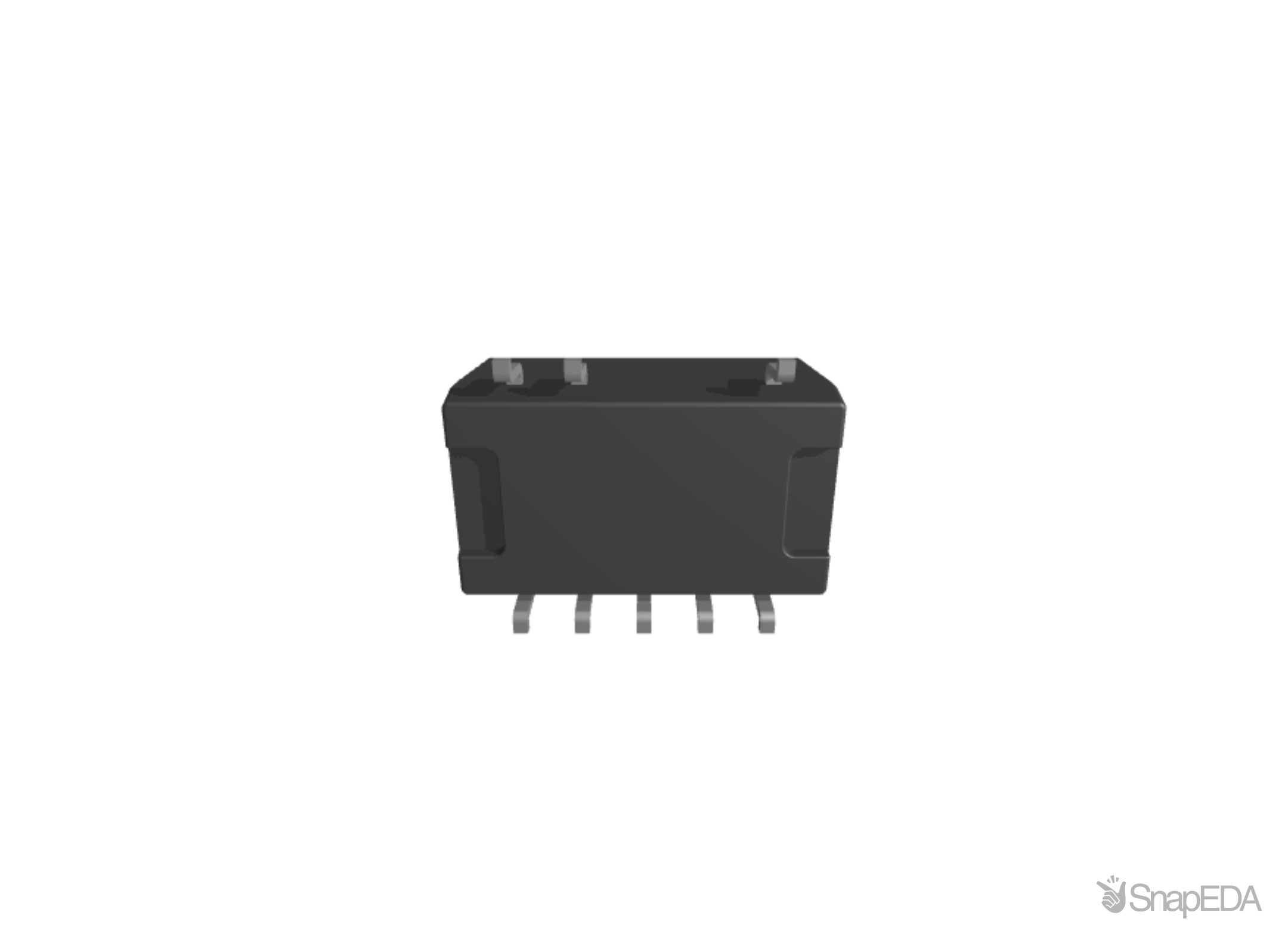

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the V78E03-500-SMT-TR
| Part Name | V78E03-500-SMT-TR |
| Manufacturer | CUI Inc. |
| Number of Outputs | 1 |
| Operating Temp MAX (°C) | 71 |
| RoHS and REACH Link | https://www.cui.com/product/resource/material-compliance/v78e-500-smt-series |
| Standard Footprint | SMT10 |
| Power (W) | 1.65 |
| Input Voltage (Vdc) (V) | 4.75 ~ 36 |
| Operating Temp MIN (°C) | -40 |
| Output Voltage (Vdc) (V) | 3.3 |
| Nom. Input Voltage (Vdc) (V) | 12, 14, 15, 18, 20, 24, 28, 30, 32, 36, 5, 6, 7.5, 9 |
| Regulation | Yes |
| Protections | Short Circuit |
| Package Type | SMT |
| Isolation (Vdc) | 0 |
| Dimensions LxWxH (mm) | 15.24 x 8.5 x 8.25 |
| Output Current (A) | 0.5 |
| Special Features | Remote On/Off Control |
| Operating Temp MAX (With Derating, °C) | 85 |
| Dimensions LxWxH (in) | 0.6 x 0.449 x 0.315 |
| Operating Temp MIN (With Derating, °C) | -40 |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the V78E03-500-SMT-TR by CUI Inc. from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Farnell UK |
|
|
Visit Site | |
| Mouser |
|
N/A | Visit Site | |
| element14 Singapore |
|
|
Visit Site |
No issues have been reported for the V78E03-500-SMT-TR
