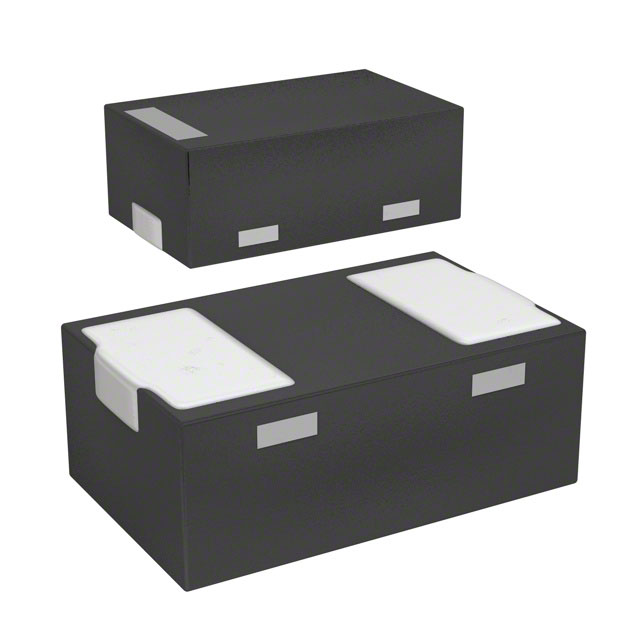

VBUS05L1-DD1-G-08
17V Clamp 2A (8/20µs) Ipp Tvs Diode Surface Mount LLP1006-2M
Availability: Out of Stock
Package Type: SMD-2
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the VBUS05L1-DD1-G-08 by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

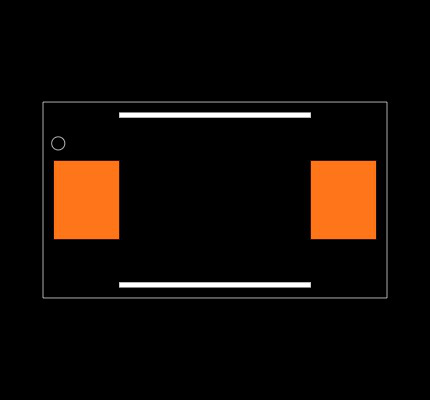

- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the VBUS05L1-DD1-G-08
| Part Name | VBUS05L1-DD1-G-08 |
| Manufacturer | Vishay Semiconductor |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Reverse Stand Off Voltage (V) | 5.5 (V) |
| Maximum Peak Pulse Current (A) | 2 (A) |
| Width | 0.65 (mm) |
| Dimensions | 1.05 x 0.65 x 0.4 (mm) |
| Minimum Breakdown Voltage (V) | 7 (V) |
| Direction Type | Bi-Directional |
| Diode Configuration | Dual |
| Maximum Reverse Leakage Current (A) | 50 (nA) |
| Esd Protection | Yes |
| Height | 0.4 (mm) |
| Capacitance | 0.4 (pF) |
| Length | 1.05 (mm) |
| Package Type | LLP1006 |
| Number Of Elements Per Chip | 2 |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Maximum Clamping Voltage (V) | 14 (V) |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 34 (W) |
| Test Current (A) | 1 (mA) |
No issues have been reported for the VBUS05L1-DD1-G-08
