VC080503A100DP
VC Series 5V 40A 0.1J 12V Clamp 0805 Ceramic Transient Voltage Suppressor | AVX VC080503A100DP
Availability: In Stock
Package Type: 0805-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the VC080503A100DP by AVX and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

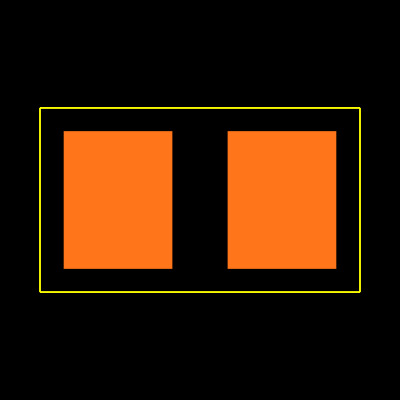

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the VC080503A100DP
| Part Name | VC080503A100DP |
| Manufacturer | AVX |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Varistor Voltage (V) | 5 (V) |
| Clamping Voltage (V) | 12 (V) |
| Dimensions | 2.01 x 1.25 x 1.02 (mm) |
| Package Case | 0805 (2012M) |
| Series | VC |
| Energy | 0.1 (J) |
| Material | Ceramic |
| Depth | 1.25 (mm) |
| Maximum Ac Voltage Rating (V) | 2.3 (V) |
| Capacitance | 1.4 (nF) |
| Length | 2.01 (mm) |
| Maximum Surge Current (A) | 40 (A) |
| Clamping Current (A) | 1 (A) |
| Maximum Dc Voltage Rating (V) | 3.3 (V) |
Inventory for the VC080503A100DP by AVX from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
12,843
|
|
Visit Site | |
| Arrow Europe |
19,000
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Farnell UK |
534
|
|
Visit Site | |
| Newark |
2,000
|
1 x $0.18
|
Visit Site | |
| RS UK |
175
|
|
Visit Site | |
| Rutronik |
95,000
|
|
Visit Site | |
| TME |
2,274
|
|
Visit Site | |
| TTI Americas |
|
|
Visit Site | |
| Verical |
19,000
|
|
Visit Site | |
| element14 Singapore |
534
|
|
Visit Site |
No issues have been reported for the VC080503A100DP
