VCAS08LC18A500RP
VARISTOR, 80PF, 0603, 18VDC, 14VAC; Voltage Rating VAC:14V; Voltage Rating V DC:18V; Product Range:StaticGuard Series; Clamping Voltage Vc Max:50V; Varistor Case Style:0805 [2012 Metric]; Varistor Type:Multilayer Varistor (MLV); Peak Surge Current @ 8/20µs:30A; Operating Temperature Min:-55°C; Operating Temperature Max:125°C; Peak Energy (10/1000uS):100mJ; Automotive Qualification Standard:-; SVHC:No SVHC (27-Jun-2018)
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the VCAS08LC18A500RP by AVX and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint

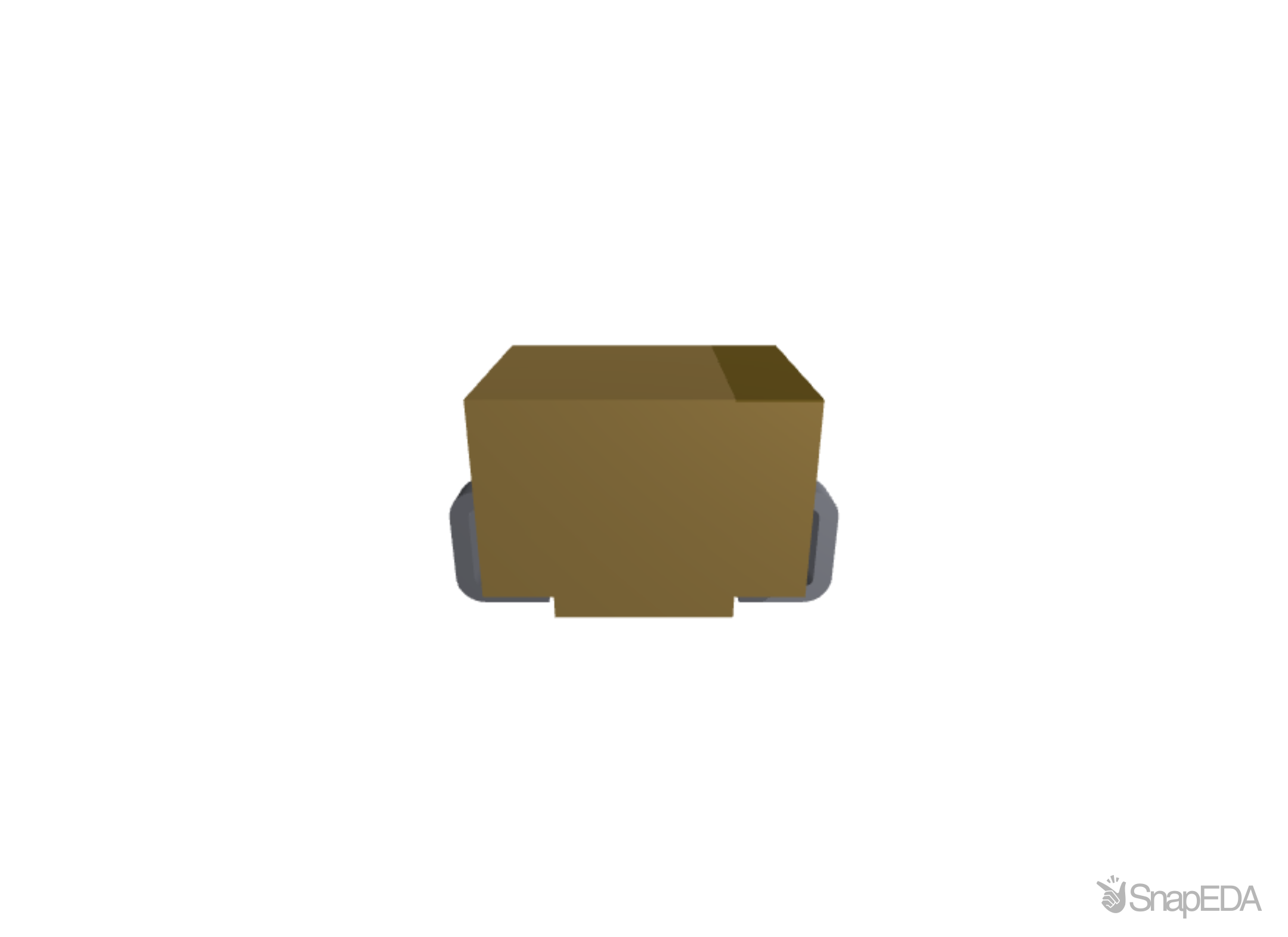

- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

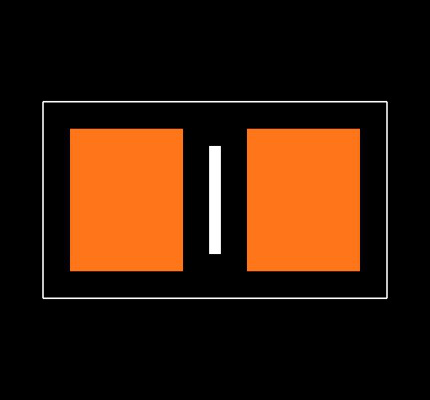

Footprint
