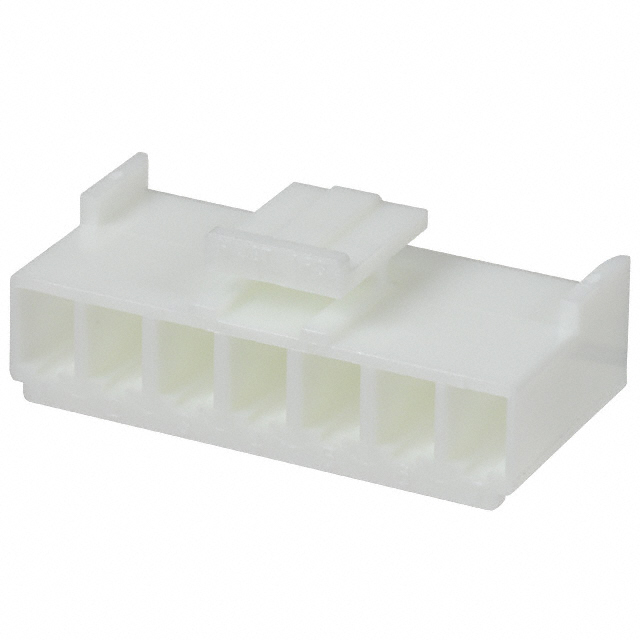

VHR-7N
7 Position Rectangular Housing Connector Receptacle Natural 0.156" (3.96mm)
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the VHR-7N by JST and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the VHR-7N
| Part Name | VHR-7N |
| Manufacturer | JST Sales |
| RoHS | True |
| Life Cycle Status | New Product |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | Cable Mount |
| Gender | Female |
| Series | VH |
| Body Orientation | Straight |
| Housing Material | Nylon |
| Width | 10.5 (mm) |
| Length | 27.66 (mm) |
| Number Of Rows | 1 |
| Pitch | 3.96 (mm) |
| For Use With | Disconnectable Crimp Connector |
| Number Of Contacts | 7 |
Inventory for the VHR-7N by JST from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Chip One Stop |
1,532
|
|
Visit Site | |
| Compona AG |
1,000
|
|
Visit Site | |
| Conrad |
1,931
|
|
Visit Site | |
| CoreStaff |
207
|
|
Visit Site | |
| Farnell UK |
18,212
|
|
Visit Site | |
| Heilind Americas |
407,603
|
|
Visit Site | |
| Interstate Connecting Components |
81,445
|
|
Visit Site | |
| Newark |
21,016
|
|
Visit Site | |
| TME |
1,216
|
|
Visit Site | |
| TTI Europe |
15,500
|
|
Visit Site | |
| element14 Singapore |
18,212
|
|
Visit Site |
No issues have been reported for the VHR-7N
If you experienced any issues with this part, please report it.
