VIPER12ADIP
Converter Offline - Topology 60kHz 8-DIP
Availability: In Stock
Package Type: SOIC-8-8
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the VIPER12ADIP by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

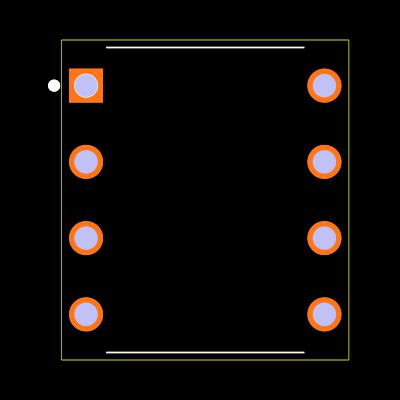

Footprint
No web preview
This Footprint is Available for

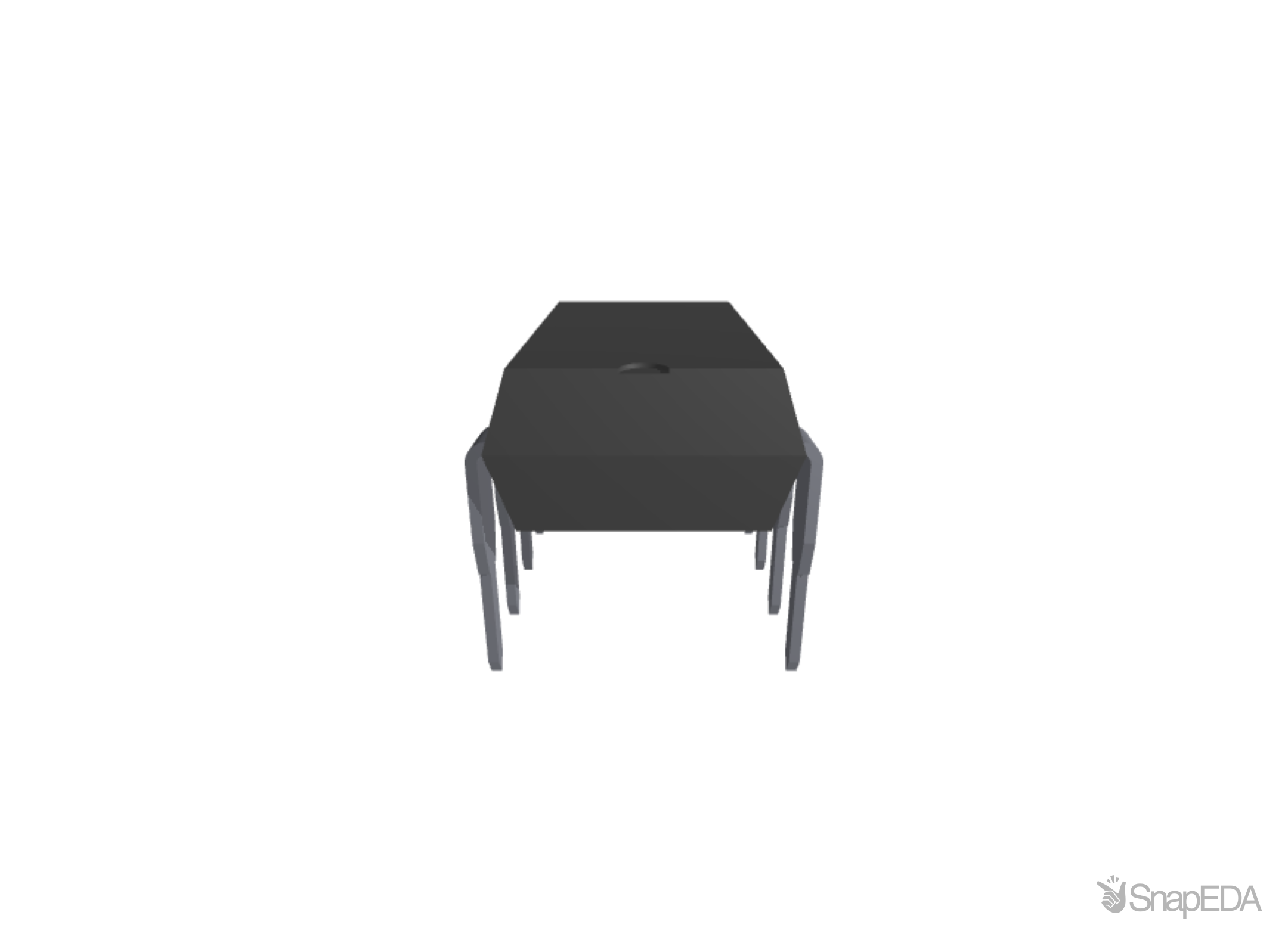

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the VIPER12ADIP
| Part Name | VIPER12ADIP |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 9.02 x 6.1 x 2.92 (mm) |
| Mounting Type | Through Hole |
| Height | 2.92 (mm) |
| Width | 6.1 (mm) |
| Length | 9.02 (mm) |
| Package Type | PDIP |
| Minimum Operating Temperature | -40 °C |
| Pwm Controller Type | Current Mode |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 8 |
