VJ0402D180JXBAJ

Name: VJ0402D180JXBAJ
Brand: Vishay

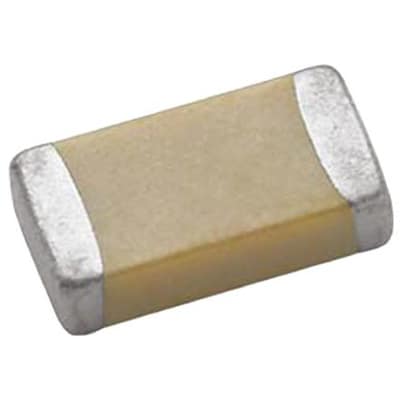

0402 VJ 18pF Ceramic Multilayer Capacitor,100V,+125C,COG Dielectric,+/-5% SMD | Vishay Dale VJ0402D180JXBAJ

Availability: In Stock

Package Type: 0402-2

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the VJ0402D180JXBAJ by Vishay and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

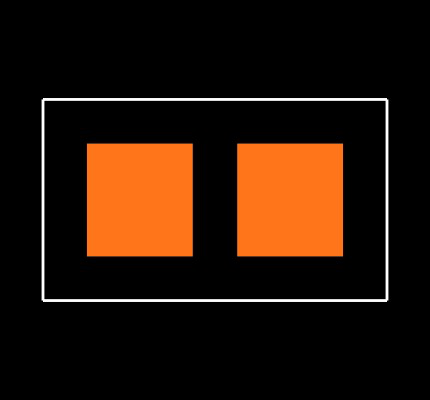

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

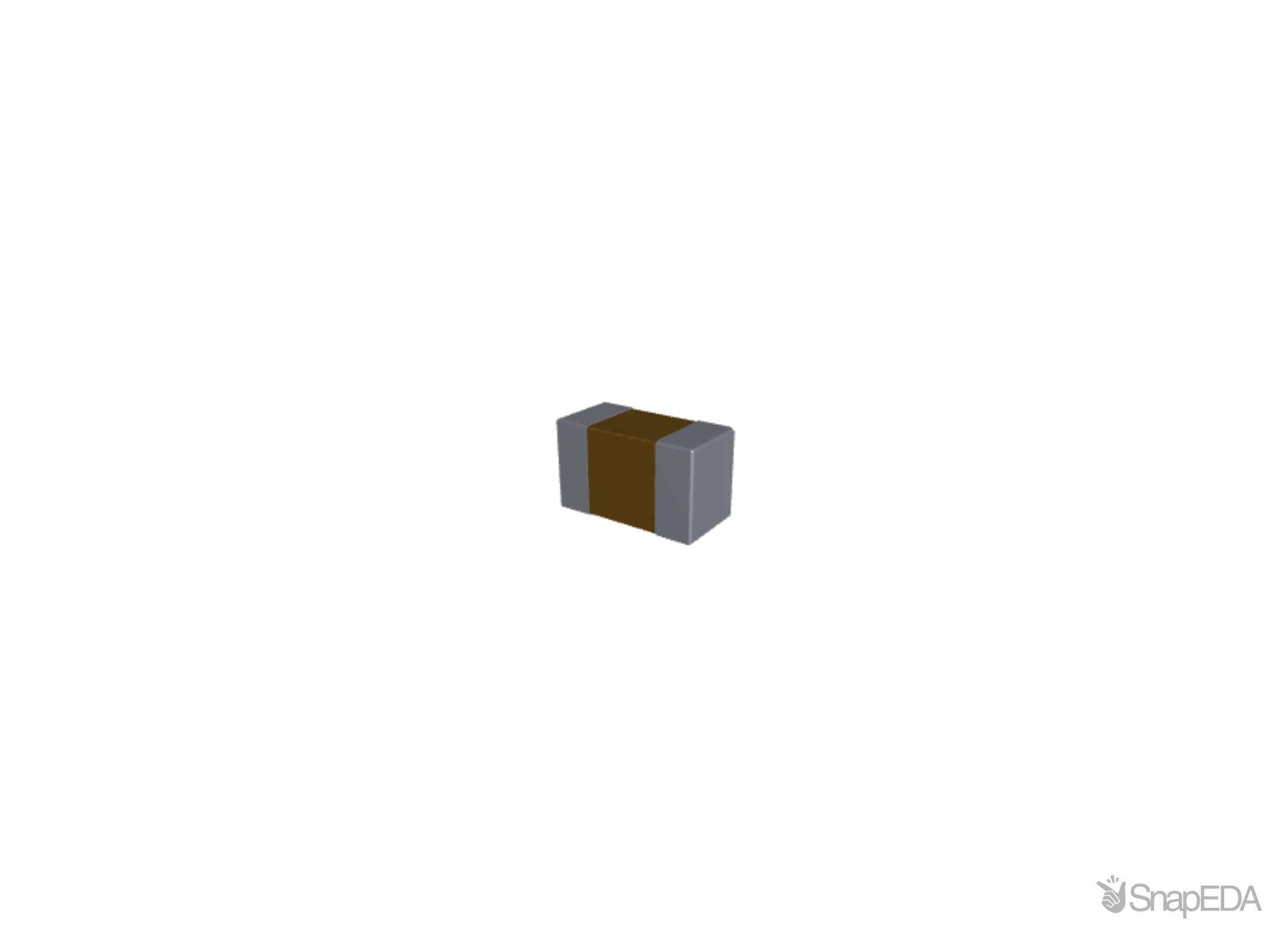

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the VJ0402D180JXBAJ

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the VJ0402D180JXBAJ

Part Name	VJ0402D180JXBAJ
Manufacturer	Vishay Vitramon
Category	Electronic Components
RoHS	True
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
Dimensions	1.02 x 0.51 x 0.61 (mm)
Mounting Type	Surface Mount
Tolerance	±5 (%)
Package Case	0402 (1005M)
Series	VJ HIFREQ
Length	1.02 (mm)
Height	0.61 (mm)
Capacitance	18 (pF)
Depth	0.51 (mm)
Voltage (V)	100 (V dc)
Minimum Operating Temperature	-55 (°C)
Maximum Operating Temperature	+125 (°C)
Terminal Type	Surface Mount
Dielectric	C0G
