VJ1206A102JXEAT
1206 VJ 1nF Ceramic Multilayer Capacitor, 500 VDC, +150degC, C0G Dielec, +/-5%
Availability: In Stock
Package Type: 1206
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the VJ1206A102JXEAT by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

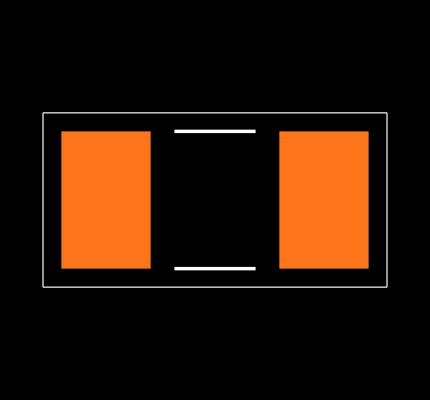

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the VJ1206A102JXEAT
| Part Name | VJ1206A102JXEAT |
| Manufacturer | Vishay |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Package Case | 1206 (3216M) |
| Capacitance | 1 (nF) |
| Voltage (V) | 50 (V dc) |
| Mounting Type | Surface Mount |
| Dielectric | C0G (NP0) |
