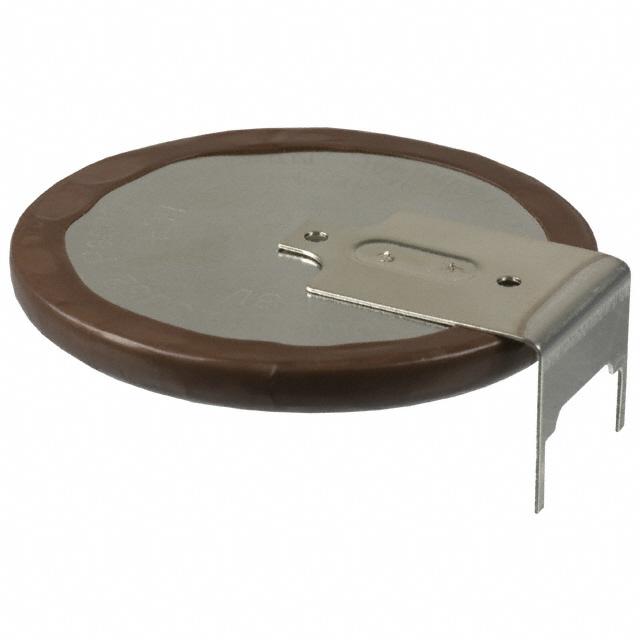

VL-3032/GUFN
Coin, 30.0mm 3 V Lithium Battery Rechargeable (Secondary) 100mAh
Availability: In Stock
Package Type: PDIP-4
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the VL-3032/GUFN by Panasonic and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

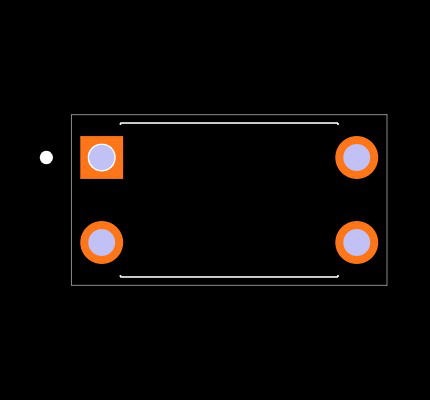

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the VL-3032/GUFN
| Part Name | VL-3032/GUFN |
| Manufacturer | Panasonic |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Diameter | 30 (mm) |
| Capacity | 100 (mAh) |
| Operating Temperature Range | -20 → +60 (°C) |
| Typical Application | CMOS RAM Memory, Microcomputer Memory, Watches |
| Nominal Voltage (V) | 3 (V) |
| Chemistry | Lithium Vanadium Pentoxide |
| Size | VL3032 |
