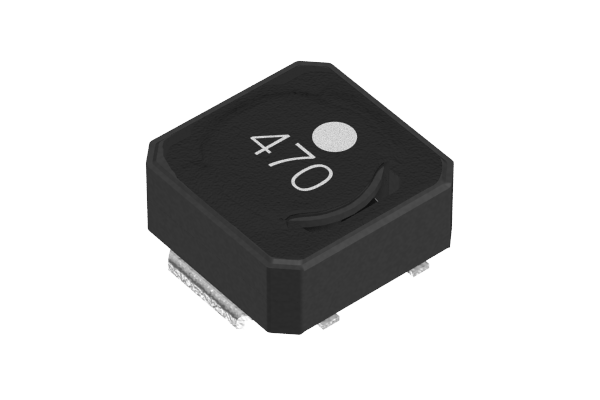

VLCF5020T-2R2N2R6-3
SMD / SMT Inductor (Coil), 2.2 - 3.3 H, 100 kHz, 2.76 - 3.25 A, 38 - 55 Ohm, 5 x 5 x 2 (LxWxH)
Availability: In Stock
Package Type: NON STANDARD-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the VLCF5020T-2R2N2R6-3 by TDK Corporation and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

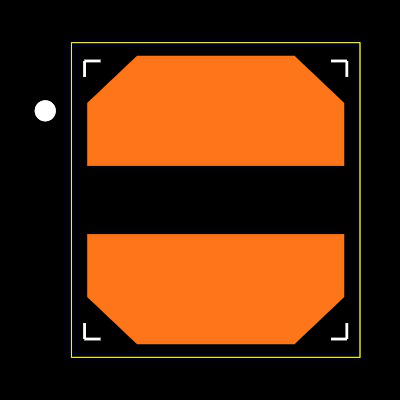

Footprint
No web preview
This Footprint is Available for

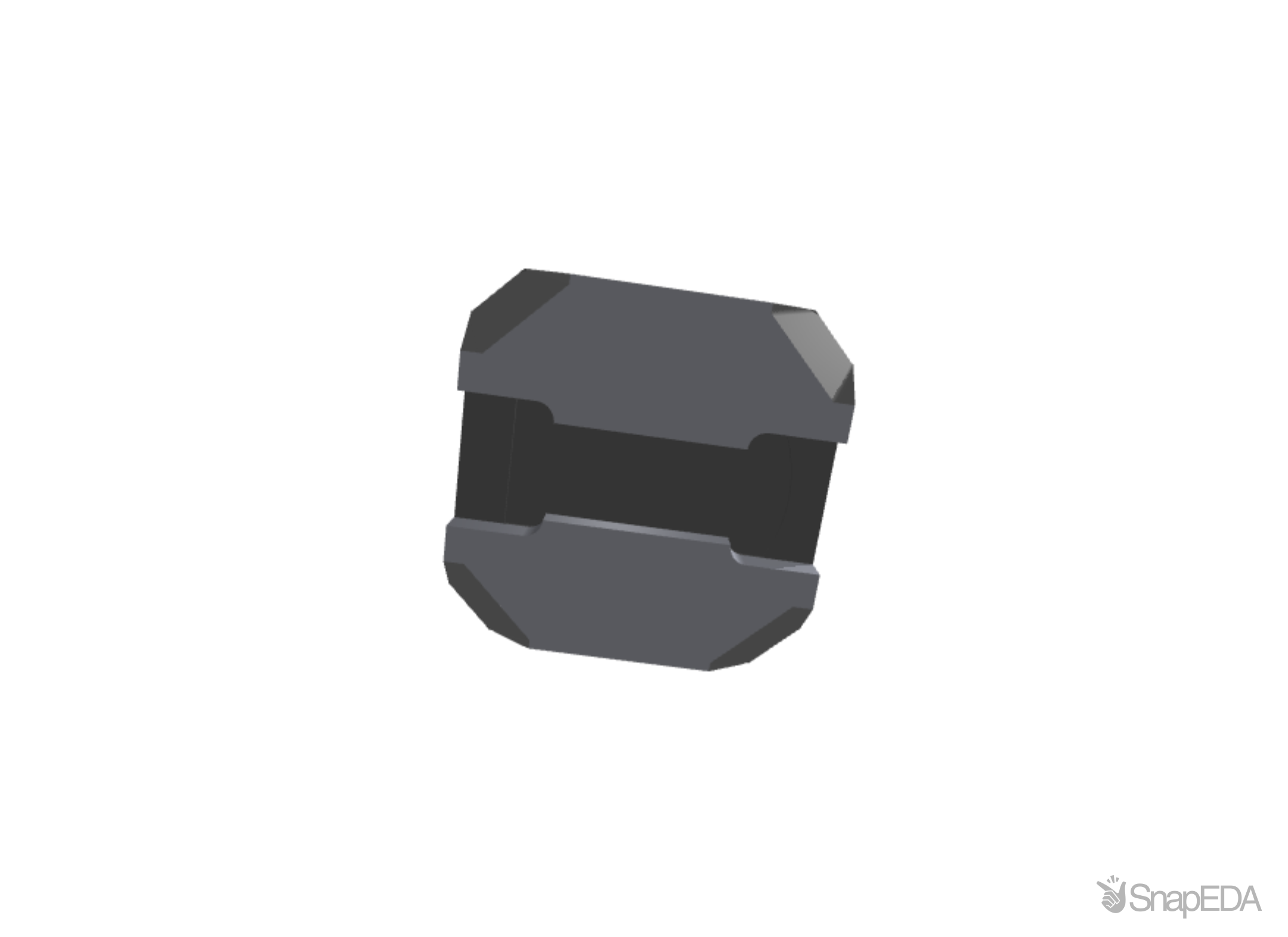

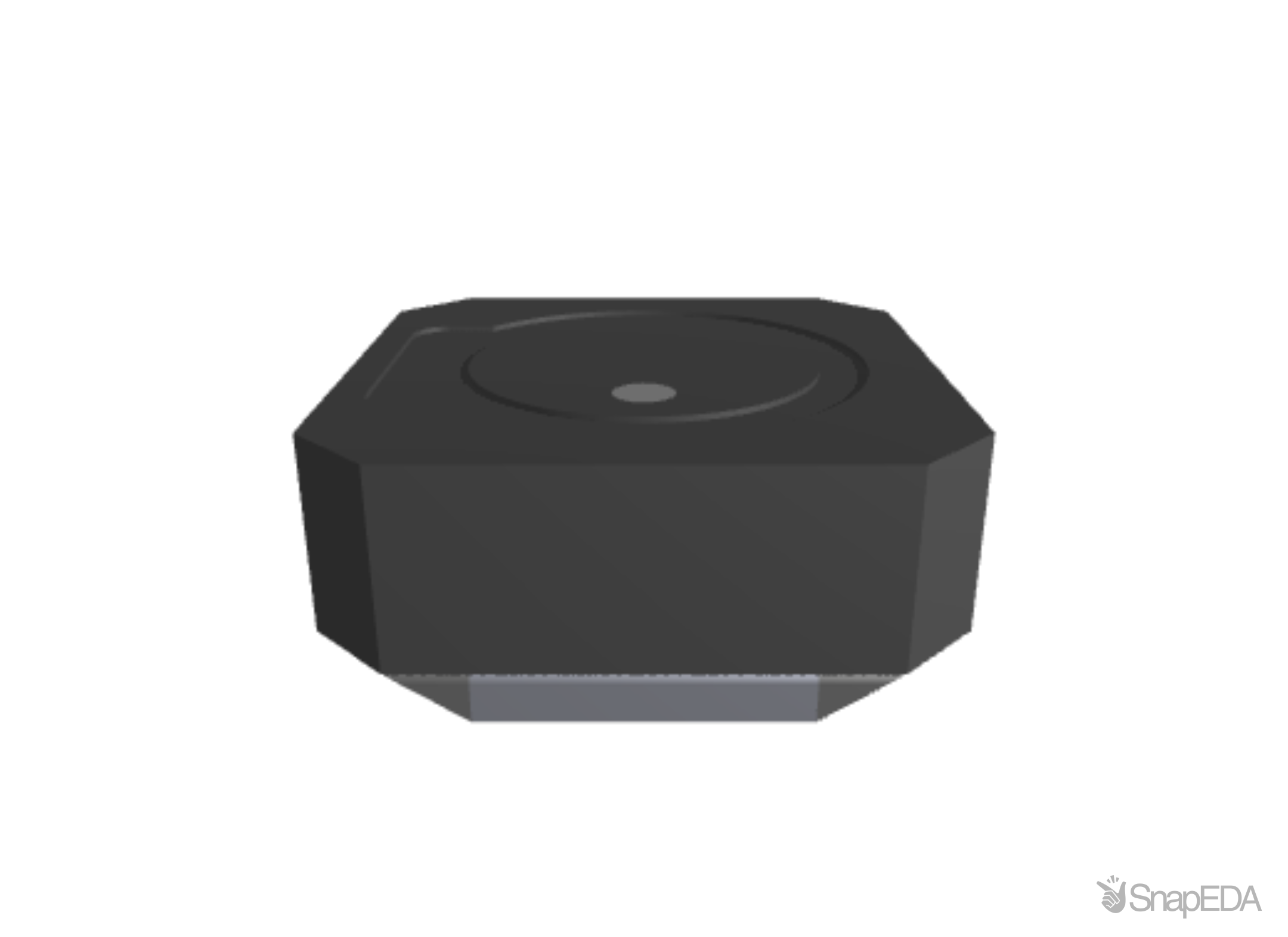

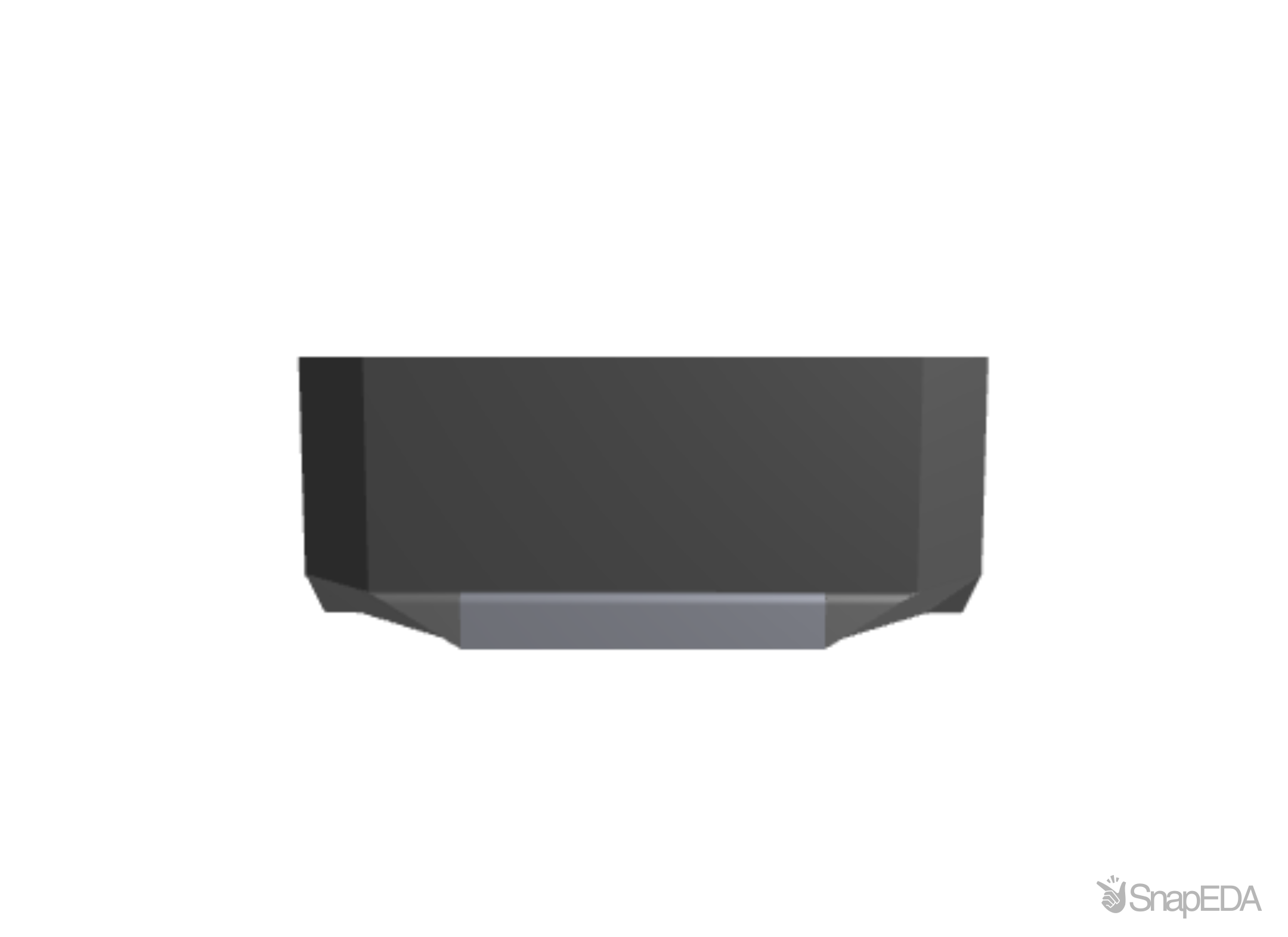

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the VLCF5020T-2R2N2R6-3
| Part Name | VLCF5020T-2R2N2R6-3 |
| Manufacturer | TDK |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Resistance | 43 (mΩ) |
| Inductor Construction | Shielded |
| Dimensions | 5 x 5 x 2 (mm) |
| Tolerance | ±30 (%) |
| Shielded | Yes |
| Series | VLCF |
| Length | 5 (mm) |
| Height | 2 (mm) |
| Maximum Dc Current (A) | 3.25 (A) |
| Depth | 5 (mm) |
| Core Material | Ferrite |
| Inductance | 2.2 μH |
| Maximum Operating Temperature | +105 (°C) |
| Minimum Operating Temperature | -40 (°C) |
| Package/Case | 5020 |
