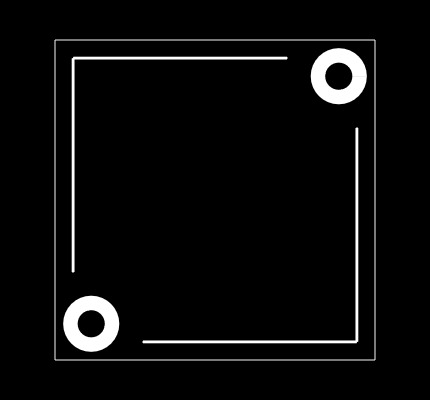

Symbol and Footprint for this part were not created by SnapMagic, if you would like our team to create this part for you then
Request Now
VLP-550-F

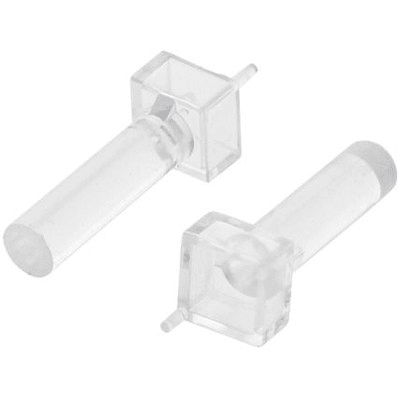

Light Pipe, Rigid, Vertical, Board Mount, SMD LED, .550 in., Flat Face | Bivar Inc. VLP-550-F
Availability: In Stock
Package Type: PANEL MOUNT
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the VLP-550-F by Bivar and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the VLP-550-F
| Part Name | VLP-550-F |
| Manufacturer | Bivar Inc. |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Rows | 1 |
| Configuration Rows X Columns | 1 x 1 |
| Orientation | Straight |
| Mounting Type | PCB Mounted |
| Series | VLP |
| Number Of Ways | 1 |
| Length | 15.4 (mm) |
| Lens Colour | Clear |
| Led Included | No |
| Flexible Rigid | Rigid |
| Lens Shape | Flat |
| Outer Diameter | 3 (mm) |
| Columns | 1 |
| Dimensions | 4.7 x 4.7 x 15.4 (mm) |
