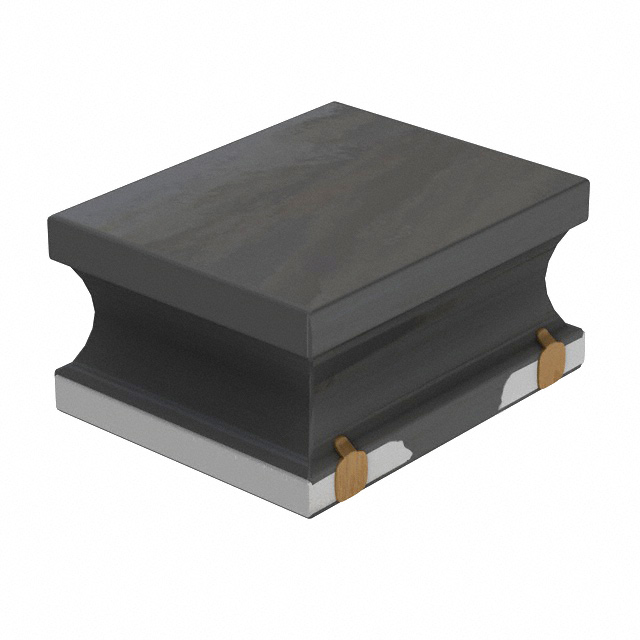

VLS252010HBX-2R2M-1
2.2 µH Shielded Drum Core, Wirewound Inductor 1.76 A 120mOhm Max 1008 (2520 Metric)
Availability: In Stock
Package Type: NON STANDARD-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the VLS252010HBX-2R2M-1 by TDK Corporation and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

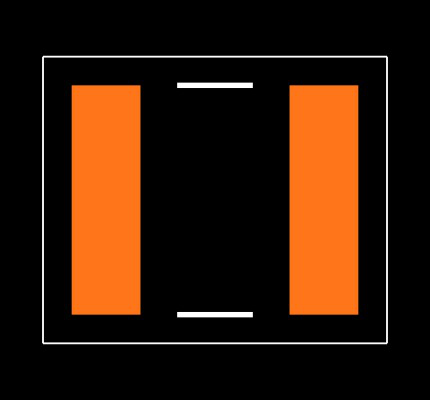

Footprint
No web preview
This Footprint is Available for

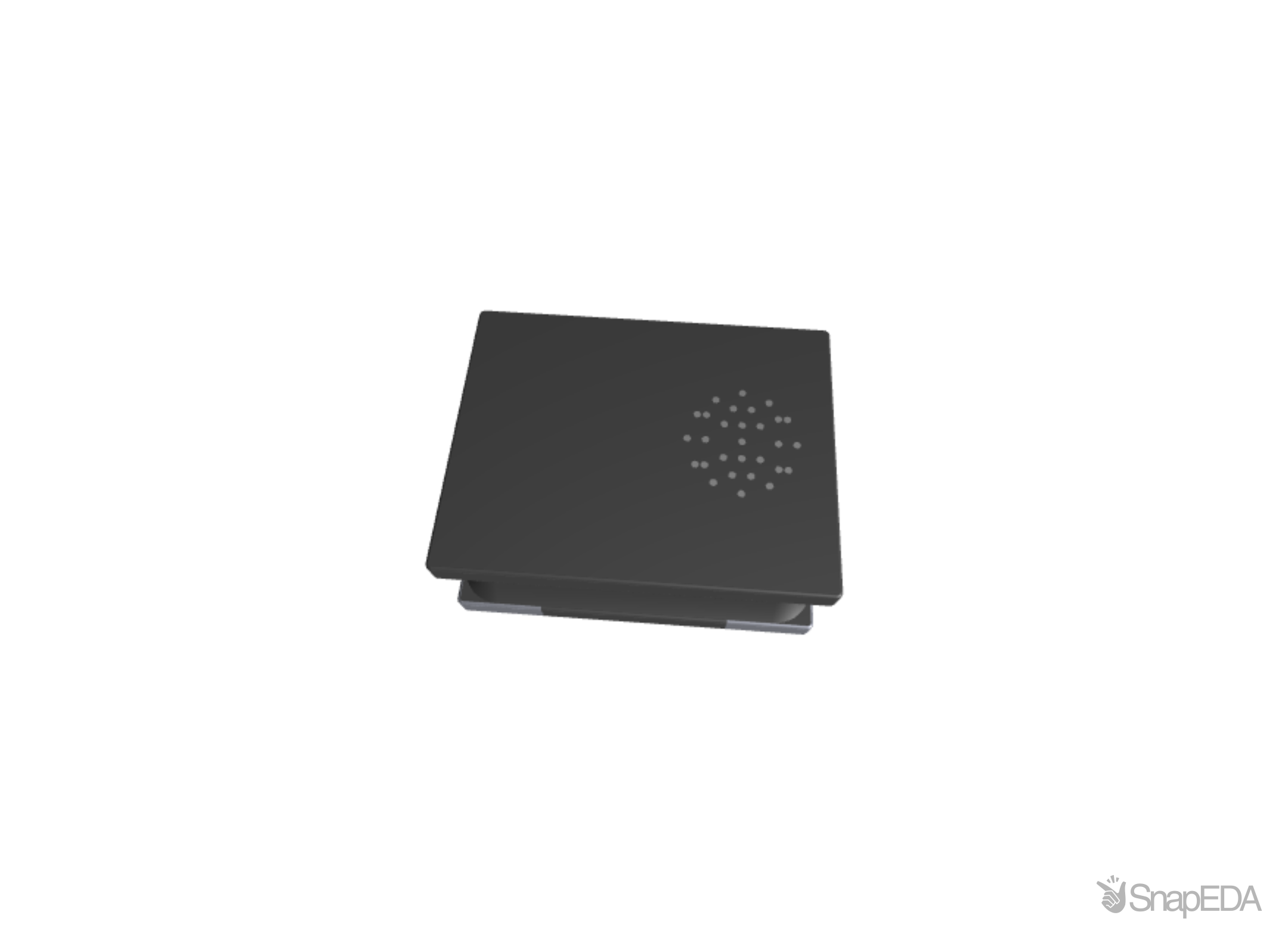

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the VLS252010HBX-2R2M-1
| Part Name | VLS252010HBX-2R2M-1 |
| Manufacturer | TDK |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Resistance | 120 (mΩ) |
| Inductor Construction | Wire-Wound |
| Dimensions | 2.5 x 2 x 1 (mm) |
| Shielded | Yes |
| Series | VLS-HBX-1 |
| Depth | 2 (mm) |
| Height | 1 (mm) |
| Package Case | 252010 |
| Length | 2.5 (mm) |
| Core Material | Metal |
| Inductance | 2.2 μH |
| Maximum Dc Current (A) | 1.76 (A) |
| Maximum Operating Temperature | +105 (°C) |
| Tolerance | ±20 (%) |
| Minimum Operating Temperature | -40 (°C) |
Inventory for the VLS252010HBX-2R2M-1 by TDK Corporation from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
15,454
|
|
Visit Site | |
|
★ Featured
|
88,000
|
6,540 x $0.05
|
Visit Site | |
| Arrow Europe |
12,000
|
|
Visit Site | |
| Avnet America |
4,000
|
2,000 x $0.10
|
Visit Site | |
| Buerklin |
|
2,000 x $0.13
|
Visit Site | |
| Farnell UK |
3,610
|
|
Visit Site | |
| Mouser |
|
|
Visit Site | |
| Newark |
3,610
|
|
Visit Site | |
| TTI Americas |
20,000
|
|
Visit Site | |
| Verical |
12,000
|
|
Visit Site |
No issues have been reported for the VLS252010HBX-2R2M-1
If you experienced any issues with the symbol or footprint, please report it.
