VLS6045EX-220M-H

Name: VLS6045EX-220M-H
Brand: TDK

22 µH Shielded Drum Core, Wirewound Inductor 1.9 A 105mOhm Nonstandard -

Availability: In Stock

Package Type: NON STANDARD-2

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the VLS6045EX-220M-H by TDK and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

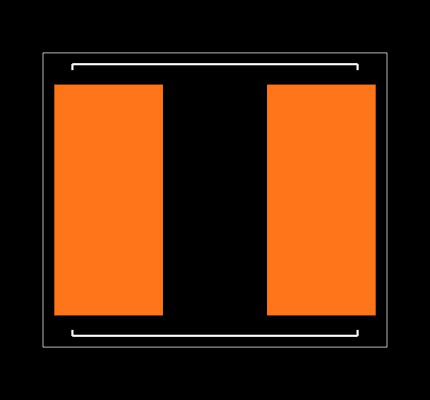

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

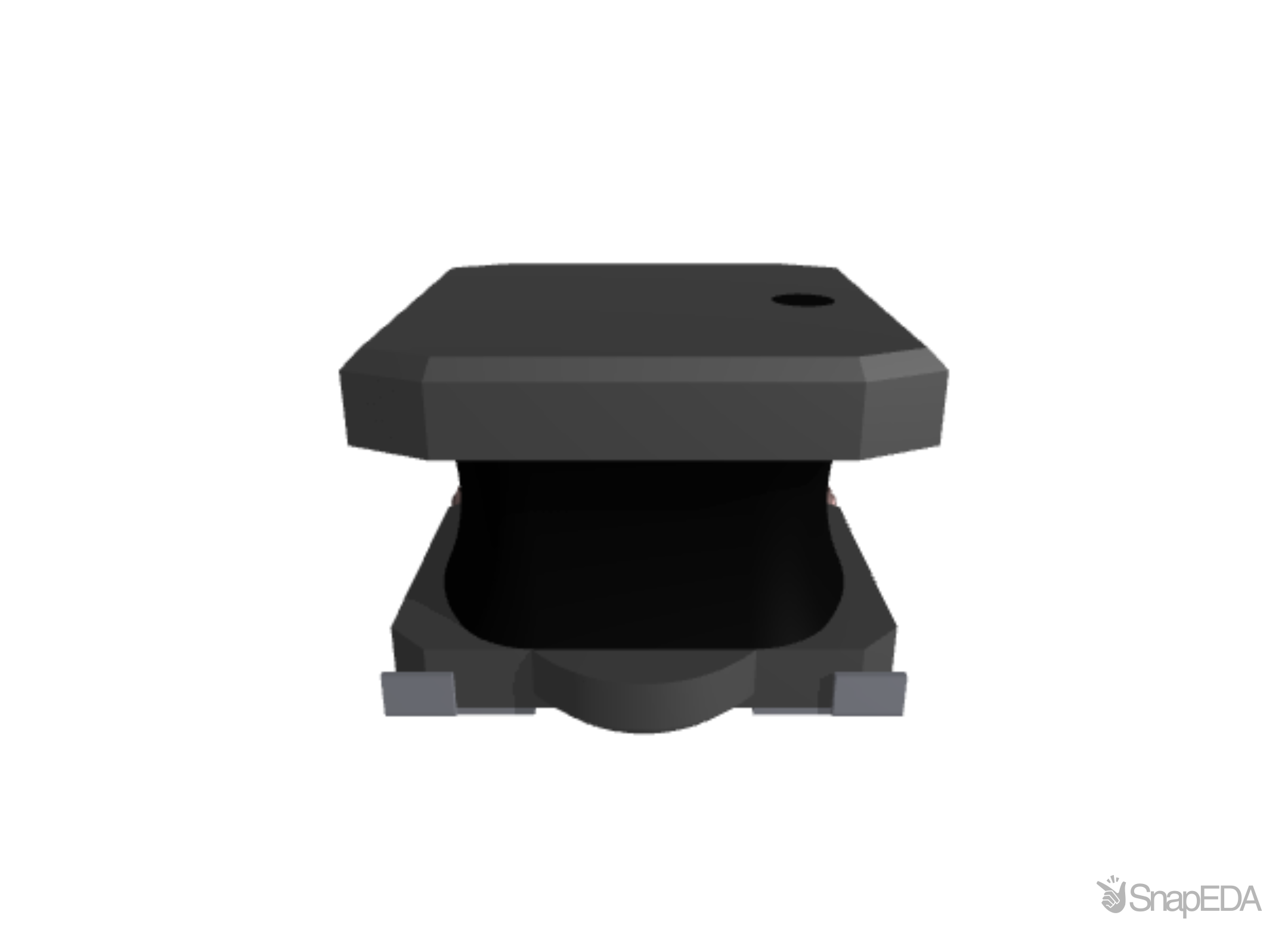

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the VLS6045EX-220M-H

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the VLS6045EX-220M-H

Part Name	VLS6045EX-220M-H
Manufacturer	TDK Corporation
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Automotive Standard	AEC-Q200
Maximum Dc Resistance	137 (mΩ)
Inductor Construction	Shielded
Dimensions	6.0 x 6.3 x 4.5 (mm)
Shielded	Yes
Series	VLS-EX-H
Depth	6.3 (mm)
Height	4.5 (mm)
Package Case	6045
Length	6 (mm)
Core Material	Ferrite Core
Inductance	22 μH
Maximum Dc Current (A)	2.4 (A)
Maximum Operating Temperature	+125 (°C)
Tolerance	±20 (%)
Minimum Operating Temperature	-40 (°C)

Inventory for the VLS6045EX-220M-H by TDK from major distributors.

Supplier	Quantity	Price	Purchase
★ Featured	17,815			Visit Site
★ Featured	1,478	2,780 x $0.11		Visit Site
