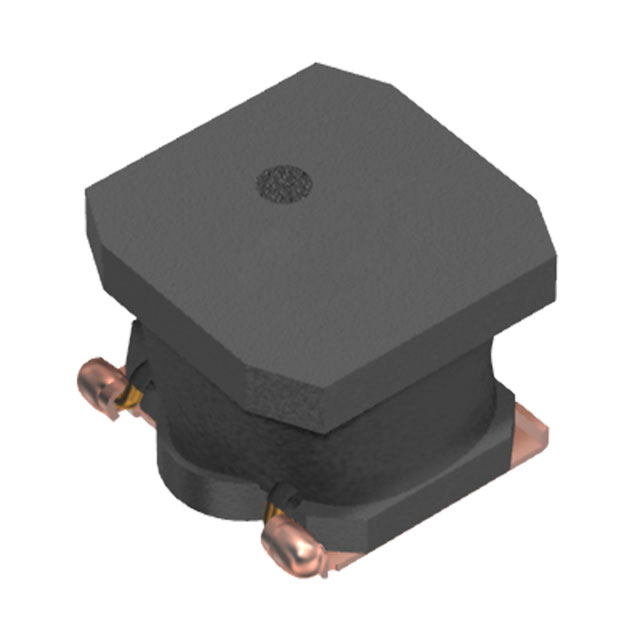

VLS6045EX-3R3N
3.3 µH Shielded Drum Core, Wirewound Inductor 4.95 A 23mOhm Nonstandard
Availability: Out of Stock
Package Type: NON STANDARD-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the VLS6045EX-3R3N by TDK and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the VLS6045EX-3R3N
| Part Name | VLS6045EX-3R3N |
| Manufacturer | TDK |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Maximum Dc Resistance | 23 (mΩ) |
| Inductor Construction | Wire-Wound |
| Dimensions | 6 x 6 x 4.5 (mm) |
| Tolerance | ±30 (%) |
| Inductance | 3.3 μH |
| Shielded | Yes |
| Series | VLS-EX |
| Package Case | 6045 |
| Length | 6 (mm) |
| Height | 4.5 (mm) |
| Maximum Dc Current (A) | 4.95 (A) |
| Depth | 6 (mm) |
| Core Material | Ferrite |
| Minimum Operating Temperature | -40 (°C) |
| Maximum Operating Temperature | +105 (°C) |
| Moulded | Yes |
No issues have been reported for the VLS6045EX-3R3N
