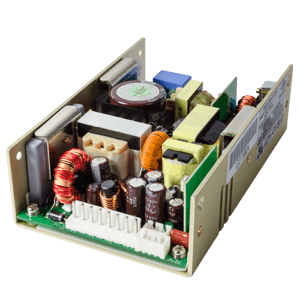

VMS-300-48
48 Vdc, 6.25 A, 300 W
IEC 60601 Medical Certified
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the VMS-300-48 by CUI Inc. and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the VMS-300-48
| Part Name | VMS-300-48 |
| Manufacturer | CUI Inc. |
| RoHS and REACH Link | https://www.cui.com/product/resource/material-compliance/vms-300-series |
| Operating Temp MIN (°C) | 0 |
| Output Voltage (Vdc) (V) | 48 |
| Protections | Over Current, Over Temperature, Over Voltage, Short Circuit |
| Nom. Input Voltage (Vac) (V) | 110, 110/230, 230 |
| Dimensions LxWxH (mm) | 127 x 81.28 x 38.1 |
| Operating Temp MAX (With Derating, °C) | 70 |
| Operating Temp MAX (°C) | 50 |
| Package Type | U-Frame |
| Safety Standards | 60601 |
| Number of Outputs | 1 |
| Safety Approvals | CE, TUV, UL/cUL |
| Power (W) | 300 |
| Output Current (A) | 6.25 |
| Special Features | Output Trim, Power Factor Correction, Power Good Signal, Remote On/Off Control |
| Operating Temp MIN (With Derating, °C) | 0 |
| RoHS | True |
| Grade | Medical |
| Standard Footprint | 3" x 5" |
| Input Voltage (Vac) (V) | 90 ~ 264 |
| Series Power (W) | 300 |
| Dimensions LxWxH (in) | 5 x 3.2 x 1.5 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
