VMS-45-12
45 W, 80 ~ 264 Vac Input, Single Output, Open Frame, Chassis Mount Ac-Dc Power Supply
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the VMS-45-12 by CUI and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

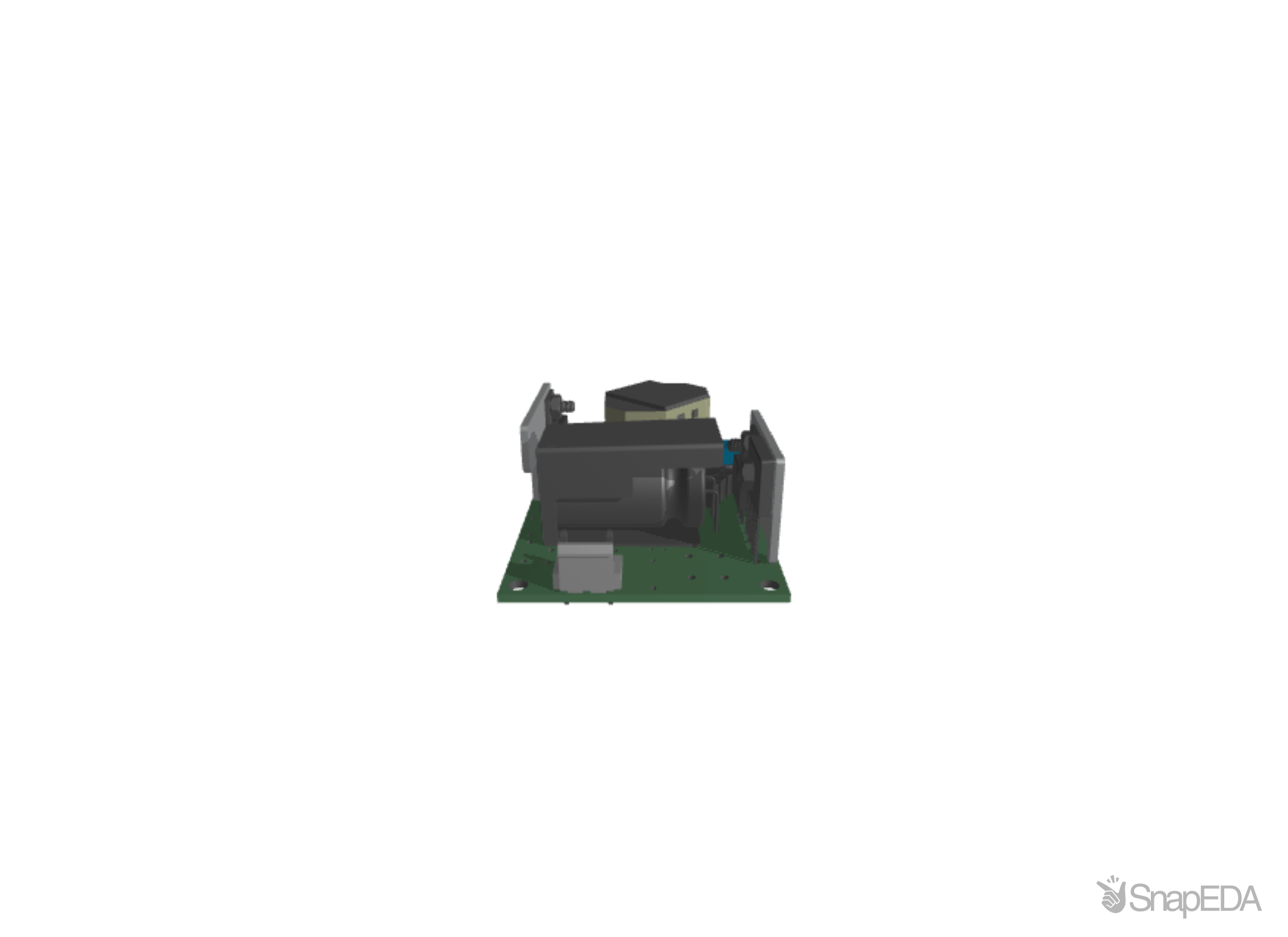

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the VMS-45-12
| Part Name | VMS-45-12 |
| Manufacturer | CUI Inc. |
| Safety Standards | 60601 |
| Number of Outputs | 1 |
| Safety Approvals | CE, UKCA, UL |
| Dimensions LxWxH (mm) | 76.2 x 50.8 x 26.5 |
| Operating Temp MAX (°C) | 85 |
| RoHS and REACH Link | https://www.cui.com/product/resource/material-compliance/vms-45-series |
| Grade | Medical |
| Power (W) | 45 |
| Operating Temp MIN (°C) | -40 |
| Output Voltage (Vdc) (V) | 12 |
| Mounting Style | Chassis Mount |
| Standard Footprint | 2" x 3" |
| Protections | Over Current, Over Voltage, Short Circuit |
| Package Type | Open Frame |
| Nom. Input Voltage (Vac) (V) | 110, 110/230, 230 |
| Input Voltage (Vac) (V) | 80 ~ 264 |
| Output Current (A) | 3.75 |
| Operating Temp MAX (With Derating, °C) | 50 |
| Series Power (W) | 45 |
| Operating Temp MIN (With Derating, °C) | -40 |
| Dimensions LxWxH (in) | 3 x 2 x 1 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
No issues have been reported for the VMS-45-12
If you experienced any issues with this part, please report it.
