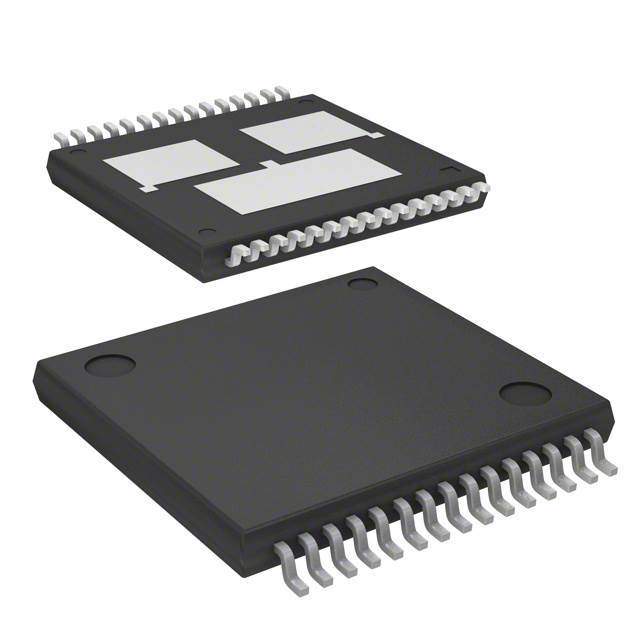

VNH3SP30
- Motor Driver Power MOSFET Parallel, PWM MultiPowerSO-30
Availability: Out of Stock
Package Type: 0-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the VNH3SP30 by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model

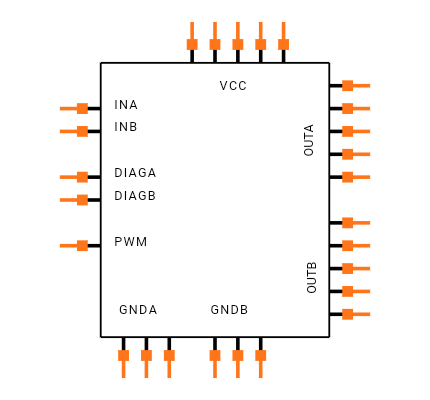

Symbol
No web preview
This Symbol is Available for

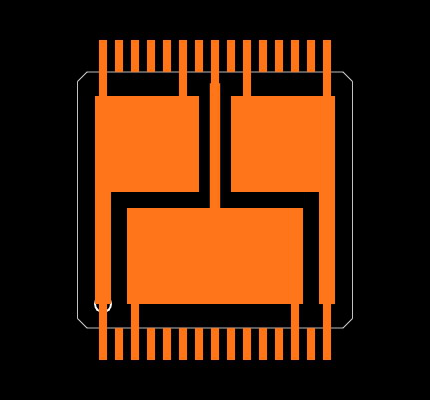

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the VNH3SP30
| Part Name | VNH3SP30 |
| Manufacturer | STMicroelectronics |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Pin Count | 30 |
| Dimensions | 17.2 x 16 x 2.25 (mm) |
| Mounting Type | Surface Mount |
| Minimum Operating Supply Voltage (V) | 5.5 V |
| Maximum Collector Emitter Voltage (V) | 40 V |
| Maximum Igbt Collector Current (A) | 30 (A) |
| Height | 2.25 (mm) |
| Width | 16 (mm) |
| Length | 17.2 (mm) |
| Package Type | MultiPowerSO |
| Typical Switching Frequency | 10 (kHz) |
| Minimum Operating Temperature | -40 °C |
| Output Configuration | Full Bridge |
| Maximum Operating Supply Voltage (V) | 36 V |
| Motor Type | Brushed DC |
| Maximum Operating Temperature | +150 °C |
| Automotive Standard | AEC-Q100 |
No issues have been reported for the VNH3SP30
