VNH7070BASTR
- Motor Driver Power MOSFET PWM 16-SO
Availability: In Stock
Package Type: SO-16
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the VNH7070BASTR by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

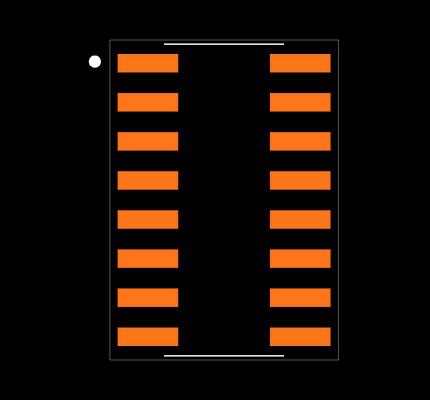

Footprint
No web preview
This Footprint is Available for

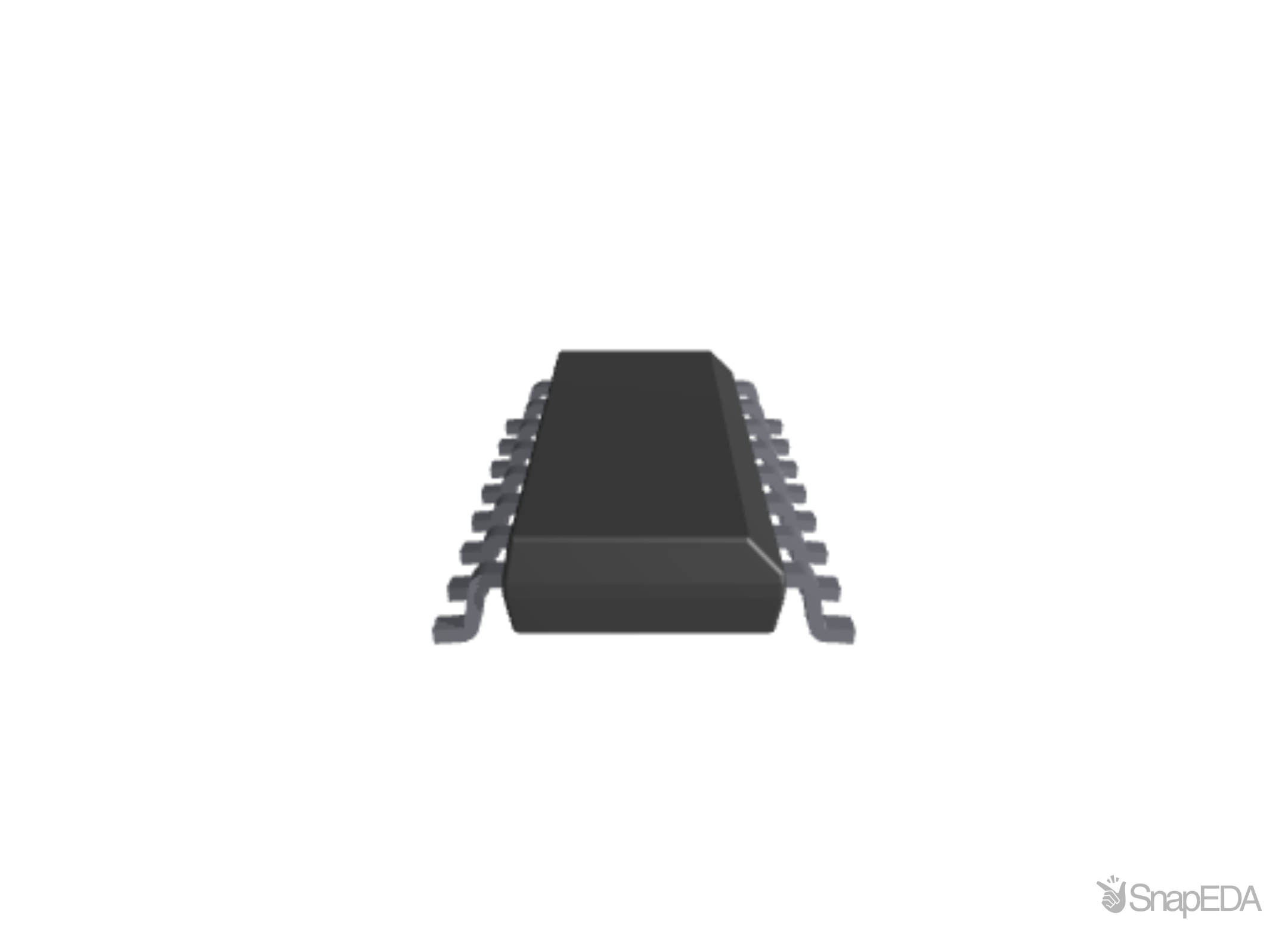

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the VNH7070BASTR
| Part Name | VNH7070BASTR |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 10 x 4 x 1.25 (mm) |
| Product Width | 4 (mm) |
| Width | 4 (mm) |
| Maximum Supply Voltage (V) | 38 V |
| Automotive Standard | AEC-Q100 |
| Motor Type | DC |
| Minimum Operating Supply Voltage (V) | 4 V |
| Product Height | 1.25 (mm) |
| Package Type | SOIC |
| Typical Switching Frequency | 20 (kHz) |
| Configuration | H Bridge |
| Maximum Operating Temperature | +150 °C |
| Product Length | 10 (mm) |
| Length | 10 (mm) |
| Pin Count | 16 |
| Mounting Type | Surface Mount |
| Maximum Operating Supply Voltage (V) | 28 V |
| Series | VNH |
| Height | 1.25 (mm) |
| Minimum Operating Temperature | -40 °C |
| Output Configuration | Dual Half Bridge |
| Maximum Output Current (A) | 15 (A) |
Inventory for the VNH7070BASTR by STMicroelectronics from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,027
|
|
Visit Site | |
|
★ Featured
|
12,800
|
115 x $3.03
|
Visit Site | |
| Arrow Europe |
5,000
|
|
Visit Site | |
| Verical |
7,147
|
|
Visit Site |
No issues have been reported for the VNH7070BASTR
If you experienced any issues with the symbol or footprint, please report it.
