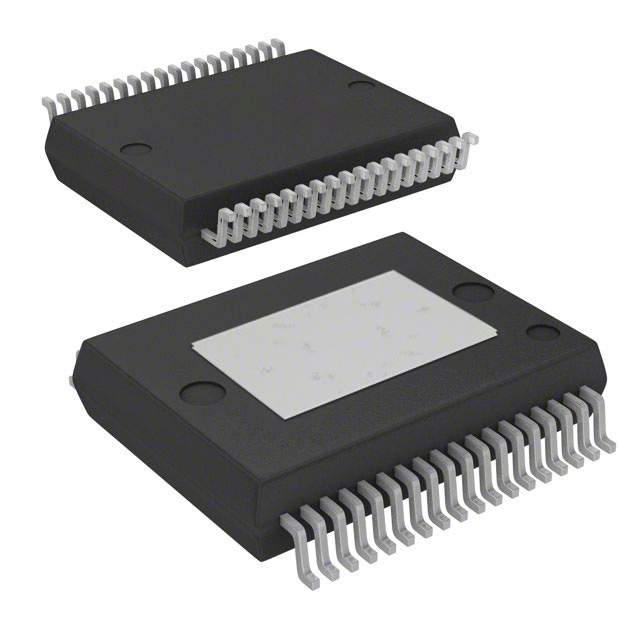

VNI8200XPTR
Power Switch/Driver 1:1 N-Channel 700mA PowerSSO-36 EPD
Availability: Out of Stock
Package Type: POWERBFSOP-36
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the VNI8200XPTR by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

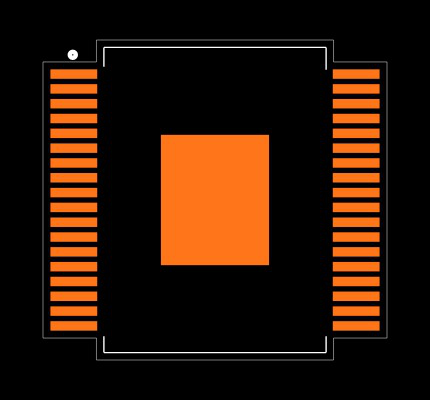

Footprint
No web preview
This Footprint is Available for

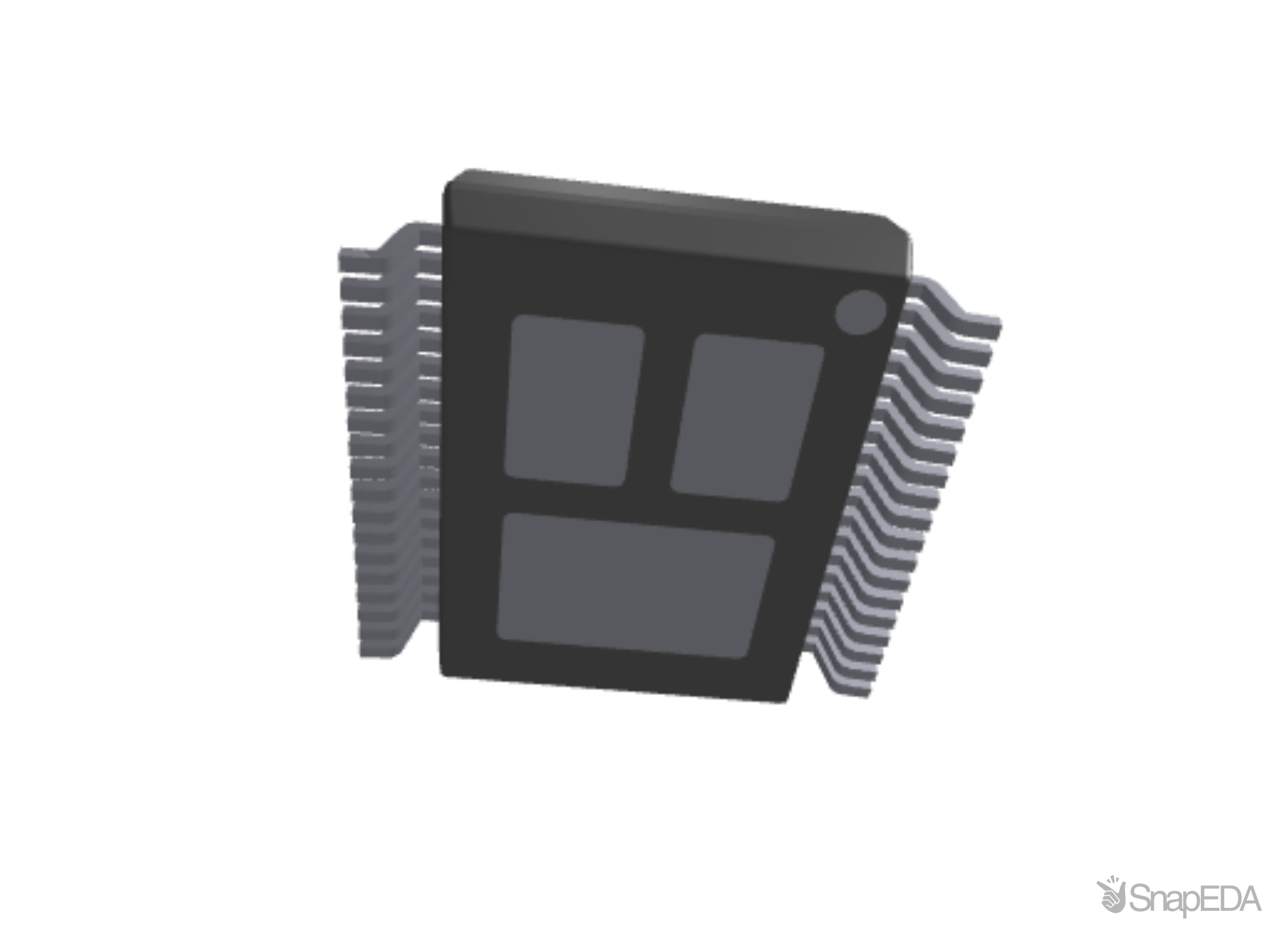

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the VNI8200XPTR
| Part Name | VNI8200XPTR |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Operating Current (A) | 0.7 (A) |
| Power Switch Type | Solid State Relay |
| Dimensions | 10.5 x 7.6 x 2.4 (mm) |
| Maximum Operating Supply Voltage (V) | 45 V |
| Number Of Outputs | 8 |
| Package Type | PowerSSO |
| Power Switch Topology | High Side |
| Switch On Resistance | 0.2 (Ω) |
| Mounting Type | Surface Mount |
| Pin Count | 36 |
No issues have been reported for the VNI8200XPTR
