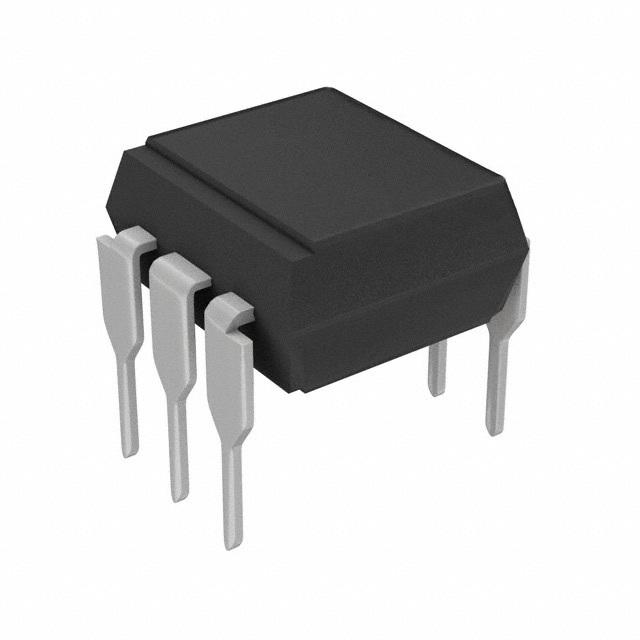

VO3062
Optocoupler (TRIAC) [Vishay] VO 3062 Optocoupler (TRIAC)
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the VO3062 by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the VO3062
| Part Name | VO3062 |
| Manufacturer | Vishay Semiconductor |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Repetitive Peak Forward Blocking Voltage (V) | 600 (V) |
| Repetitive Peak Reverse Voltage (V) | 6 (V) |
| Dimensions | 9 x 6.4 x 3.5 (mm) |
| Mounting Type | Through Hole |
| Surge Current Rating (A) | 1 (Non-Reptitive) (A) |
| Maximum Operating Temperature | +100 °C |
| Height | 3.5 (mm) |
| Repetitive Peak Off State Current (A) | 500 (nA) |
| Width | 6.4 (mm) |
| Length | 9 (mm) |
| Package Type | DIP |
| Minimum Operating Temperature | -55 °C |
| Maximum Gate Trigger Current (A) | 10 (mA) |
| Peak On State Voltage (V) | 3 (V) |
| Pin Count | 6 |
| Maximum Gate Trigger Voltage (V) | 22 (V) |
Inventory for the VO3062 by Vishay from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
509
|
|
Visit Site | |
|
★ Featured
|
1,335
|
|
Visit Site | |
|
★ Featured
|
11,000
|
615 x $0.56
|
Visit Site |
No issues have been reported for the VO3062
