VOF-S60B-12-PB
SnapVerified
60 W, 90 ~ 264 Vac Input, Single Output, Open Frame, Board Mount, Ac-Dc Power Supply
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the VOF-S60B-12-PB by CUI Inc. and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

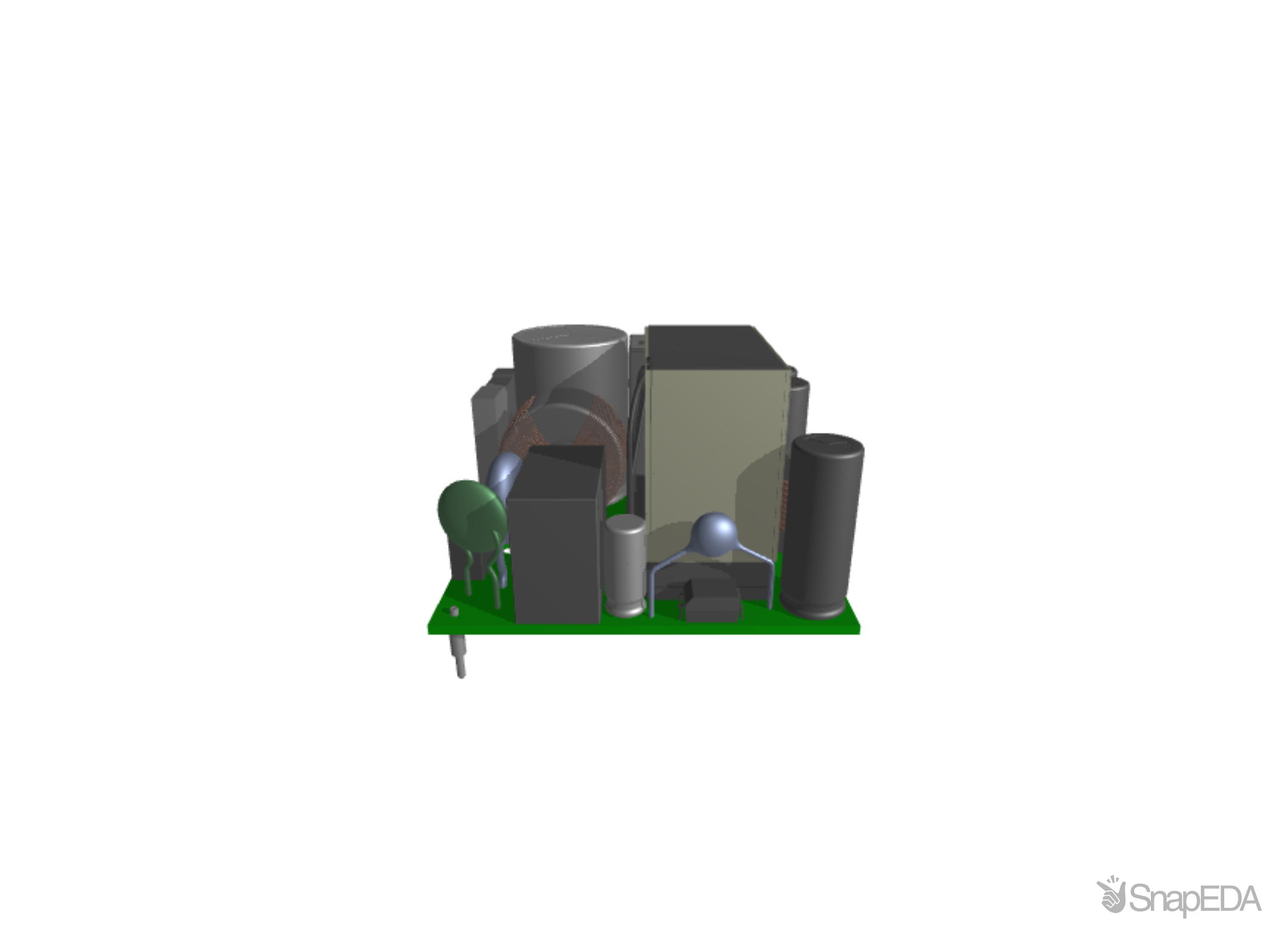

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the VOF-S60B-12-PB
| Part Name | VOF-S60B-12-PB |
| Manufacturer | CUI Inc. |
| RoHS and REACH Link | https://www.cui.com/product/resource/material-compliance/vof-s60b-series |
| Operating Temp MIN (°C) | -30 |
| Output Voltage (Vdc) (V) | 12 |
| Protections | Over Voltage, Short Circuit |
| Nom. Input Voltage (Vac) (V) | 110, 110/230, 230 |
| Dimensions LxWxH (mm) | 50.8 x 50.8 x 34.2 |
| Operating Temp MAX (With Derating, °C) | 70 |
| Operating Temp MAX (°C) | 50 |
| Package Type | Open Frame |
| Safety Standards | 62368 |
| Number of Outputs | 1 |
| Safety Approvals | Nemko, UL/cUL |
| Power (W) | 60 |
| Output Current (A) | 5 |
| Special Features | Power Boost |
| Operating Temp MIN (With Derating, °C) | -30 |
| RoHS | True |
| Grade | Commercial |
| Mounting Style | PCB |
| Input Voltage (Vac) (V) | 90 ~ 264 |
| Series Power (W) | 60 |
| Dimensions LxWxH (in) | 2 x 2 x 1.35 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the VOF-S60B-12-PB by CUI Inc. from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Mouser |
|
80 x $45.58
|
Visit Site | |
| Newark |
50
|
1 x $50.28
|
Visit Site | |
| Onlinecomponents |
10
|
|
Visit Site |
No issues have been reported for the VOF-S60B-12-PB
