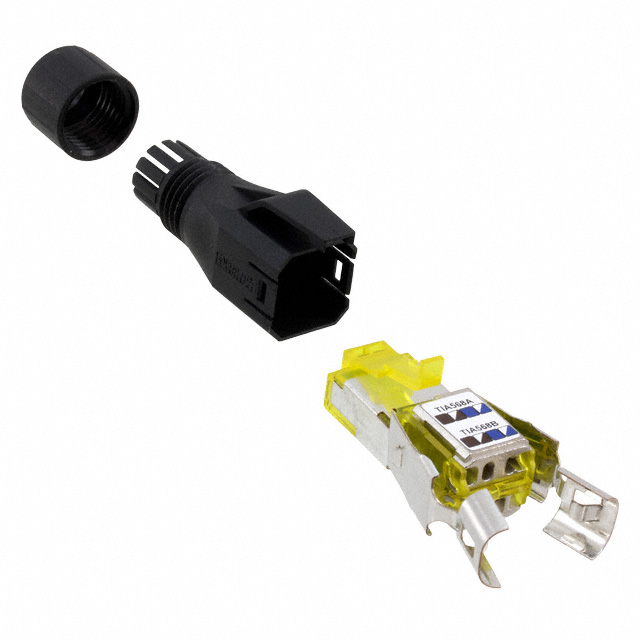

VS-08-RJ45-10G/Q
Plug Modular Connector 8p8c (RJ45, Ethernet) Position Shielded Cat6a IDC
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the VS-08-RJ45-10G/Q by Phoenix Contact and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the VS-08-RJ45-10G/Q
| Part Name | VS-08-RJ45-10G/Q |
| Manufacturer | Phoenix Contact |
| Acceleration | 50.00 m/s² |
| Contact Resistance | < 20 mΩ (Contact) |
| Frequency Range | to 500 MHz |
| Insertion Force Per Signal Contact | < 20.00 N |
| Cable Outlet, Angle | 180 |
| Transmission Medium | Copper |
| Rated Current (A) | 1.75 A |
| Positions/contacts | 8P8C |
| External Cable Diameter | 4.5 mm ... 8 mm |
| Housing Material | Plastic |
| Width | 13.8 mm |
| GTIN | 4046356521567 |
| Contact Resistance Per Contact Pair | < 20 Ω |
| Transmission Speed | 10 Gbps |
| Transmission Characteristics (category) | CAT6A |
| Type | RJ45 |
| Connection Cross Section Awg (connection Technology) | 26 ... 24 (flexible) |
| Test Duration | 20.00 s |
| Connection Method | Insulation displacement connection |
| Sensor Type | Ethernet |
| Product Description | RJ45 connector, design: RJ45, degree of protection: IP20, number of positions: 8, 10 Gbps, CAT6A, material: Plastic, connection method: Insulation displacement connection, connection cross section: AWG 26- 24, cable outlet: straight, color: black, Ethernet |
| Cable Cross Section | 0.14 mm² |
| Connection Cross Section Awg | 26 ... 24 (solid) |
| Degree Of Pollution | 2 |
| No. Of Cable Outlets | 1 |
| Frequency | 10-500 Hz |
| Unspsc (unspsc 21.0) | 39121400 |
| Product Type | RJ45 connector |
| Specification | IECÂ 60068-2-6 |
| Conductor Cross-section | 0.14 mm² ... 0.22 mm² (solid) |
| Material For Screw Connection | PA |
| Overvoltage Category (V) | I |
| Nominal Voltage Un (V) | 48 V |
| Shielded | yes |
| Eclass (eclass-13.0) | 27440114 |
| Cable Outlet | straight |
| Contact Carrier Material | PC |
| Conductor Cross-section (connection Technology) | 0.14 mm² ... 0.22 mm² (flexible) |
| Contact Surface Material | Au/Ni |
| Wave Impedance | 100 Ω |
| Length | 55.5 mm |
| Insertion/withdrawal Cycles | ≥ 750 |
| Sweep Speed | 1Â octave/min |
| Amplitude | 0.35 mm |
| Contact Resistance (electrical Properties) | 0.005 Ω (Litz wires – IDC) |
| Type Of Test | Vibration test |
| Flammability Rating According To Ul 94 | V2 |
| Rated Voltage (iii/3) (V) | 72 V (DC) |
| Locking Latch Material | PC |
| RoHS | True |
| Test Voltage Core/shield (V) | 1500.00 V |
| Mounting Type | For field assembly |
| Color | black |
| Test Voltage Core/core (V) | 1000 V |
| Extraction Force Per Signal Contact | < 20 N |
| Height | 17.3 mm |
| Nominal Current In (A) | 1.75 A |
| Connection In Acc. With Standard | IECÂ 60603-7-51 |
| Insulation Resistance | > 500 MΩ |
| Eclass (eclass-15.0) | 27440114 |
| Number Of Positions | 8 |
| Etim (etim 10.0) | EC002636 |
| Contact Material | CuSn |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
