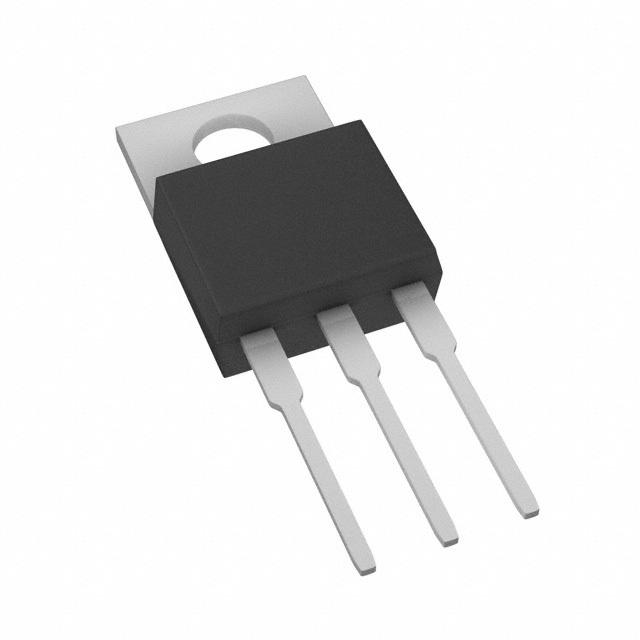

VS-16TTS12-M3
SCR 1.2 kV 16 A Standard Recovery Through Hole TO-220-3
Availability: Out of Stock
Package Type: TO-220AB-3
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the VS-16TTS12-M3 by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

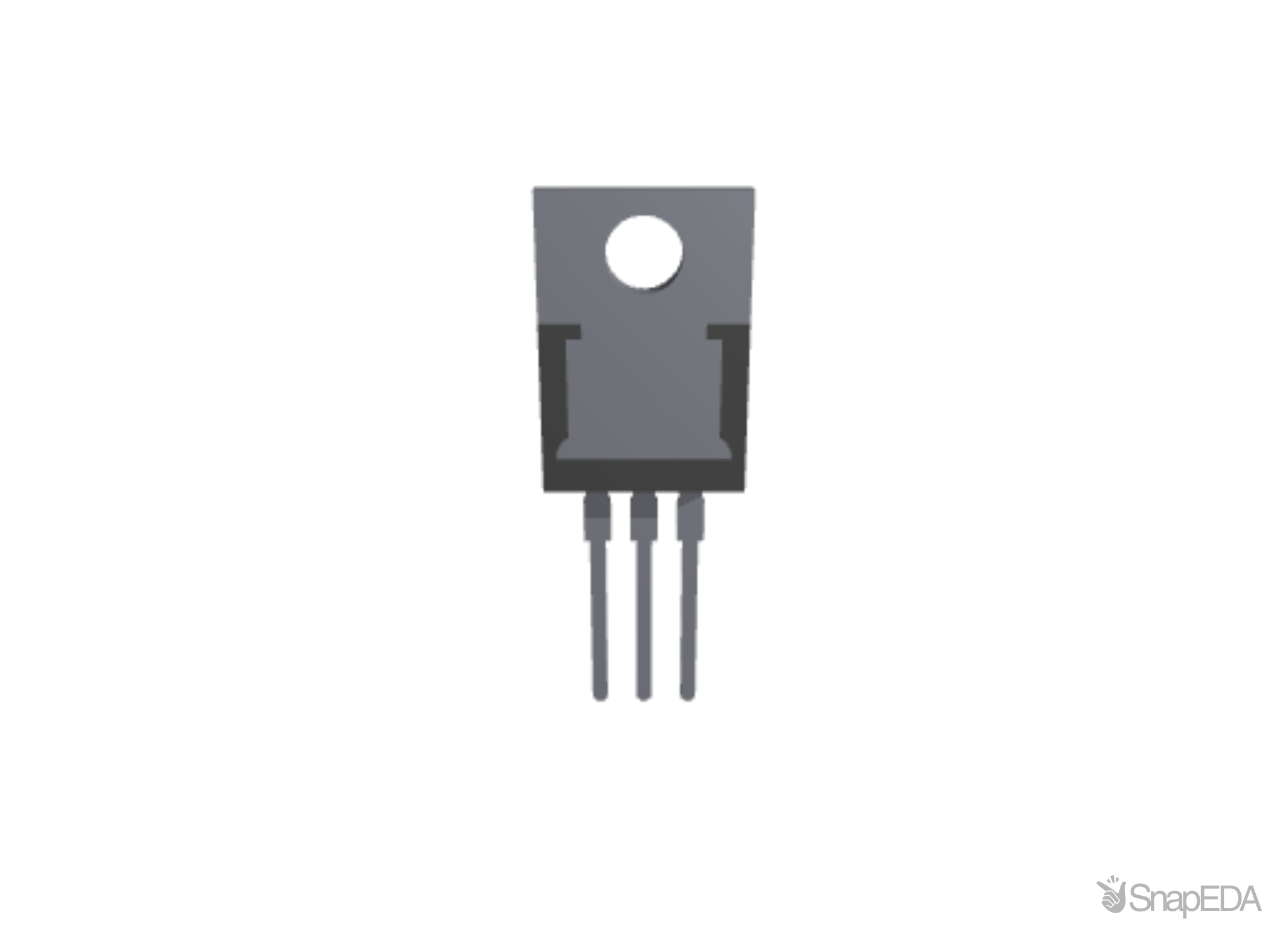

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the VS-16TTS12-M3
| Part Name | VS-16TTS12-M3 |
| Manufacturer | Vishay Semiconductor |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Repetitive Peak Forward Blocking Voltage (V) | 1200 (V) |
| Repetitive Peak Reverse Voltage (V) | 1200 (V) |
| Maximum Gate Trigger Voltage (V) | 2 (V) |
| Mounting Type | Through Hole |
| Surge Current Rating (A) | 200 (A) |
| Peak On State Voltage (V) | 1.4 (V) |
| Repetitive Peak Off State Current (A) | 0.5 (mA) |
| Package Type | TO-220AC |
| Minimum Operating Temperature | -40 °C |
| Maximum Holding Current (A) | 100 (mA) |
| Maximum Gate Trigger Current (A) | 60 (mA) |
| Rated Average On State Current (A) | 10 (A) |
| Thyristor Type | SCR |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 3 |
| Dimensions | 10.54 x 4.57 x 8.76 (mm) |
No issues have been reported for the VS-16TTS12-M3
