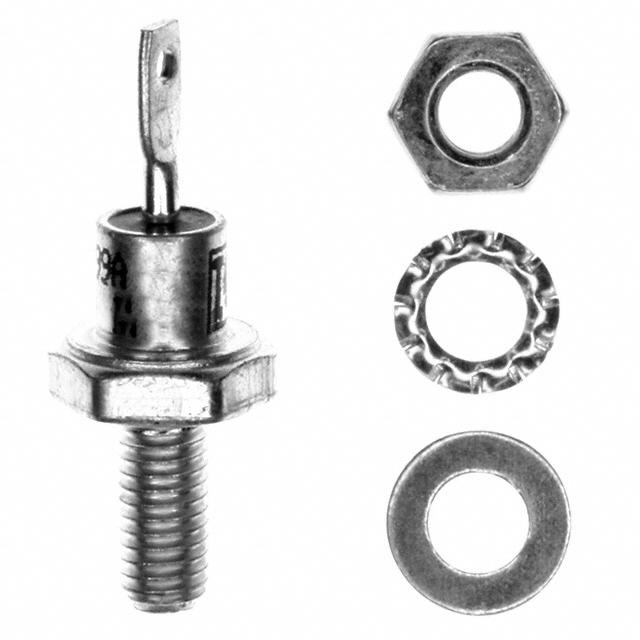

VS-25F80M
Rectifier diode 25F80M 25A 800V
Availability: Out of Stock
Package Type: DO-4
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the VS-25F80M by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the VS-25F80M
| Part Name | VS-25F80M |
| Manufacturer | Vishay Semiconductor |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | Thread Mount |
| Diode Technology | Silicon Junction |
| Maximum Forward Voltage Drop (V) | 1.3 (V) |
| Rectifier Type | Recovery Rectifier |
| Package Type | DO-4 |
| Peak Reverse Repetitive Voltage (V) | 800 (V) |
| Diode Type | Rectifier |
| Maximum Continuous Forward Current (A) | 25 (A) |
| Diode Configuration | Stud Cathode |
| Pin Count | 2 |
| Peak Non Repetitive Forward Surge Current (A) | 373 (A) |
| Number Of Elements Per Chip | 1 |
No issues have been reported for the VS-25F80M
