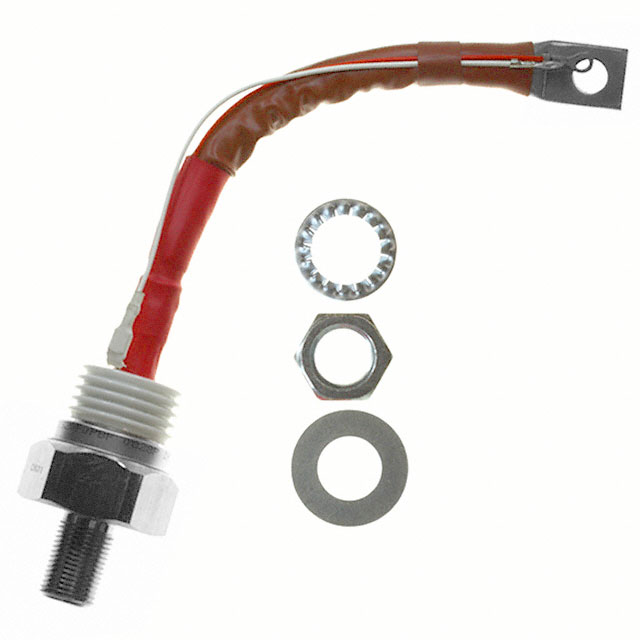

VS-ST330S12P1
SCR 1.2kV 520A Standard Recovery Chassis, Stud Mount TO-209AE (TO-118)
Availability: Out of Stock
Package Type: TO-118-4
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the VS-ST330S12P1 by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the VS-ST330S12P1
| Part Name | VS-ST330S12P1 |
| Manufacturer | Vishay Semiconductor |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Repetitive Peak Forward Blocking Voltage (V) | 1200 (V) |
| Repetitive Peak Reverse Voltage (V) | 1200 (V) |
| Maximum Gate Trigger Voltage (V) | 3 (V) |
| Mounting Type | Stud |
| Surge Current Rating (A) | 9420 (A) |
| Peak On State Voltage (V) | 1.52 (V) |
| Repetitive Peak Off State Current (A) | 50 (mA) |
| Package Type | TO-118 |
| Minimum Operating Temperature | -40 °C |
| Maximum Holding Current (A) | 600 (mA) |
| Maximum Gate Trigger Current (A) | 200 (mA) |
| Rated Average On State Current (A) | 330 (A) |
| Thyristor Type | SCR |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 3 |
| Dimensions | 49 x 42.5 x 74.5 (mm) |
