Symbol and Footprint for this part were not created by SnapMagic, if you would like our team to create this part for you then
Request Now

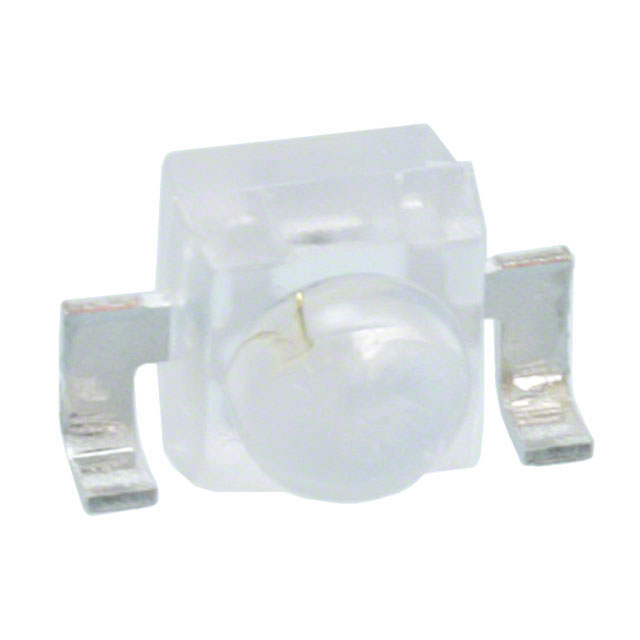

VSMB2948SL
Infrared (IR) Emitter 940nm 1.35V 100mA 20mW/sr @ 100mA 50° 2-SMD, Gull Wing
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the VSMB2948SL by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

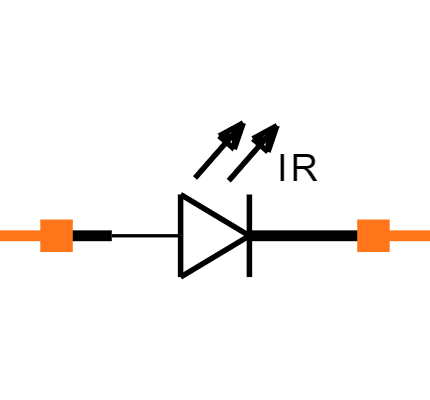

Symbol
No web preview
This Symbol is Available for

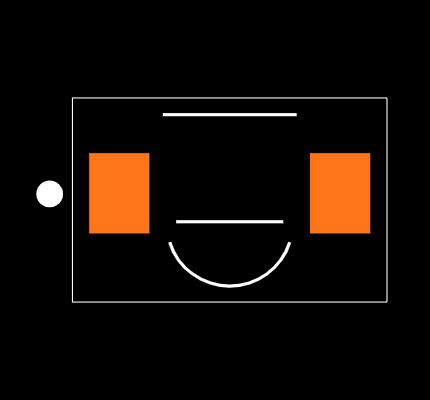

Footprint
No web preview
This Footprint is Available for

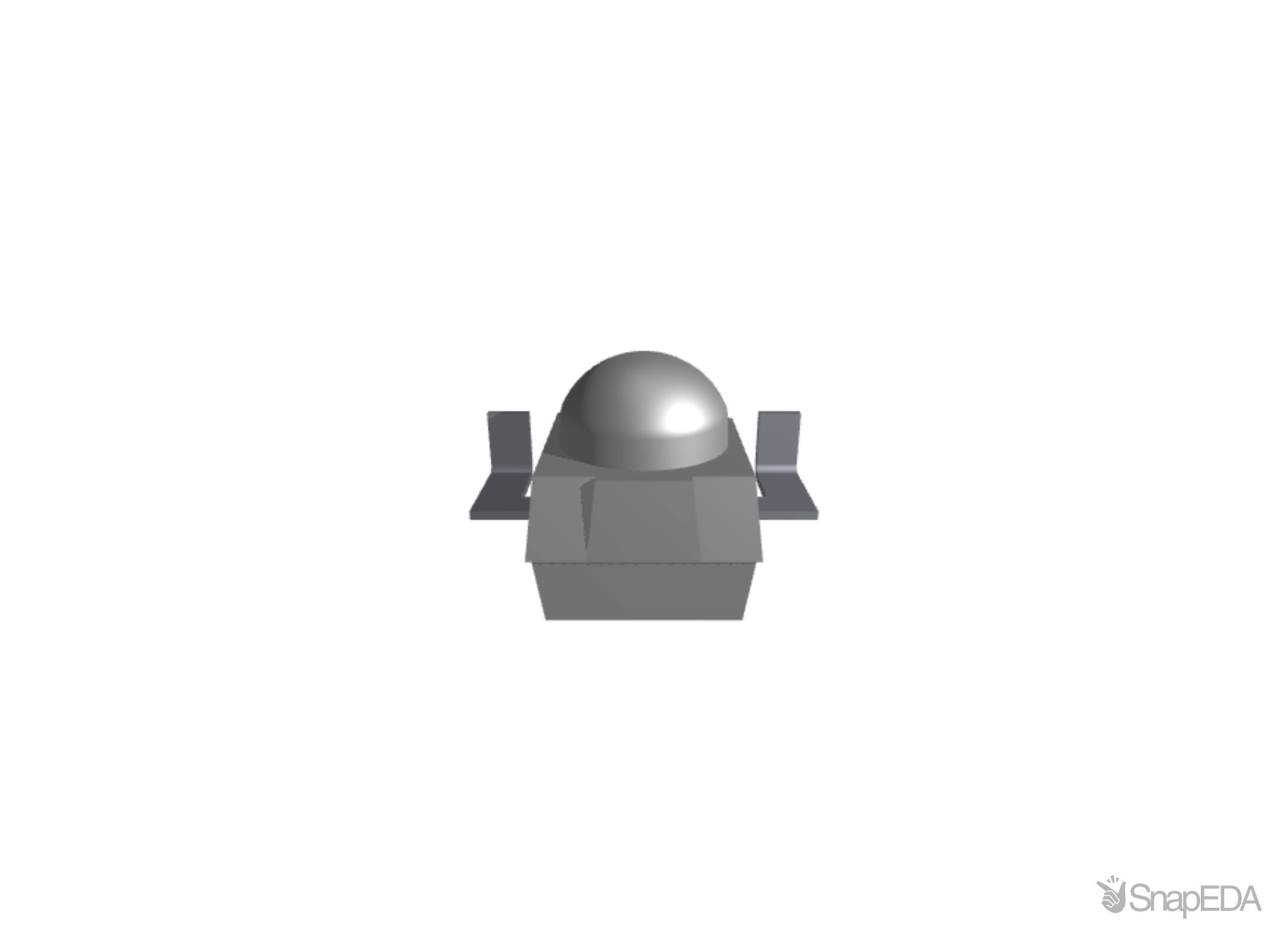

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the VSMB2948SL
| Part Name | VSMB2948SL |
| Manufacturer | Vishay Semiconductor |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 2.3 x 2.55 x 2.3 (mm) |
| Mounting Type | Surface Mount |
| Radiant Flux | 40 (mW) |
| Angle Of Half Intensity | ±25 (°) |
| Radiant Intensity | 90 (mW/sr) |
| Package Type | Subminiature SL |
| Led Material | GaAlAs |
| Number Of Leds | 1 |
| Lens Shape | Dome |
| Peak Wavelength | 960 (nm) |
| Number Of Pins | 2 |
Inventory for the VSMB2948SL by Vishay from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
956
|
|
Visit Site | |
|
★ Featured
|
2,731
|
|
Visit Site | |
|
★ Featured
|
88,300
|
1,385 x $0.25
|
Visit Site | |
| Verical |
530
|
|
Visit Site |
No issues have been reported for the VSMB2948SL
If you experienced any issues with the symbol or footprint, please report it.
