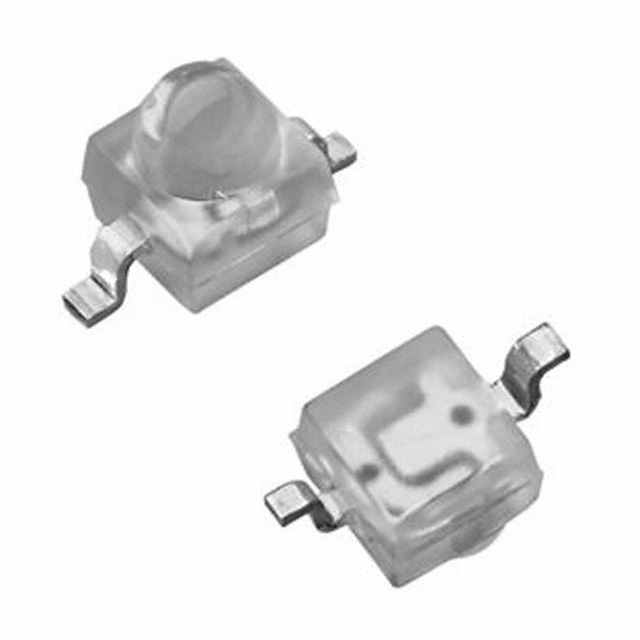

VSMY2850G
Infrared (IR) Emitter 850nm 1.65V 100mA 50mW/sr @ 100mA 20° 2-SMD, Gull Wing
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the VSMY2850G by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model

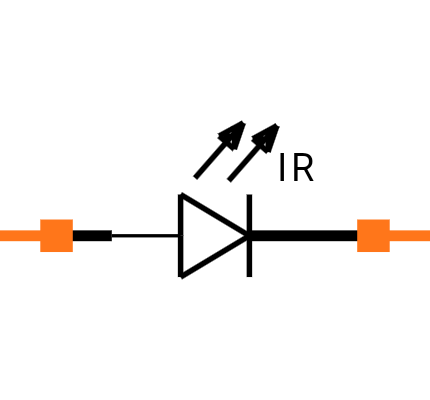

Symbol
No web preview
This Symbol is Available for

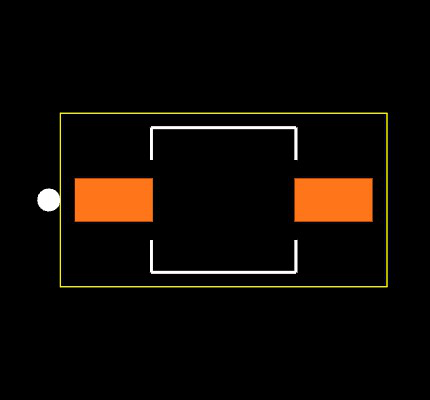

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the VSMY2850G
| Part Name | VSMY2850G |
| Manufacturer | Vishay |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 2.3 x 2.3 x 2.77 (mm) |
| Mounting Type | Surface Mount |
| Radiant Flux | 55 (mW) |
| Angle Of Half Intensity | ±10 (°) |
| Radiant Intensity | 850 (mW/sr) |
| Package Type | Subminiature |
| Led Material | GaAlAs |
| Number Of Leds | 1 |
| Lens Shape | Dome |
| Peak Wavelength | 870 (nm) |
| Number Of Pins | 2 |
Inventory for the VSMY2850G by Vishay from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
118,833
|
|
Visit Site | |
|
★ Featured
|
50,000
|
1,025 x $0.34
|
Visit Site | |
| Arrow Electronics |
718
|
|
Visit Site | |
| Verical |
718
|
|
Visit Site |
No issues have been reported for the VSMY2850G
