VT6M1T2CR

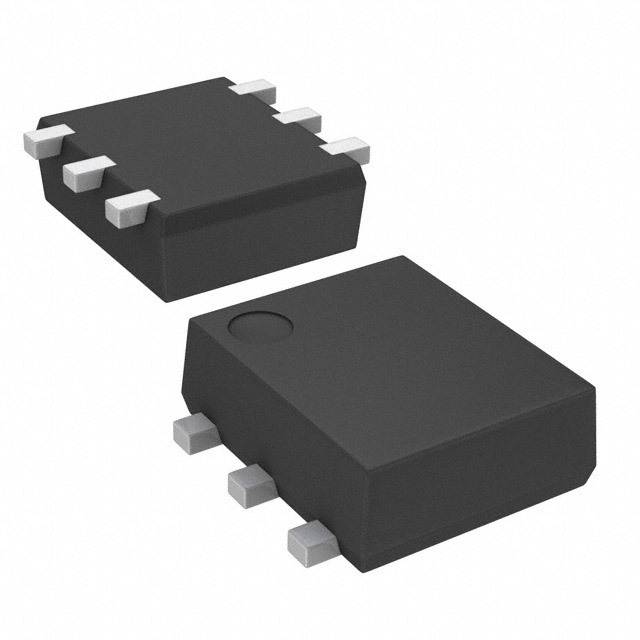

Mosfet Array N and P-Channel 20V 100mA 120mW Surface Mount VMT6
Availability: In Stock
Package Type: SMD-6
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the VT6M1T2CR by Rohm and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

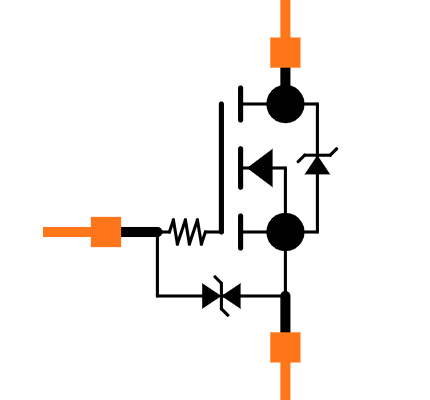

Symbol
No web preview
This Symbol is Available for

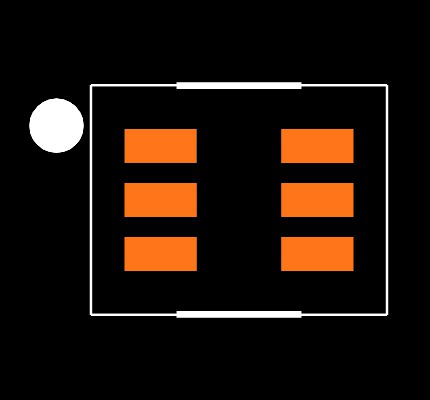

Footprint
No web preview
This Footprint is Available for

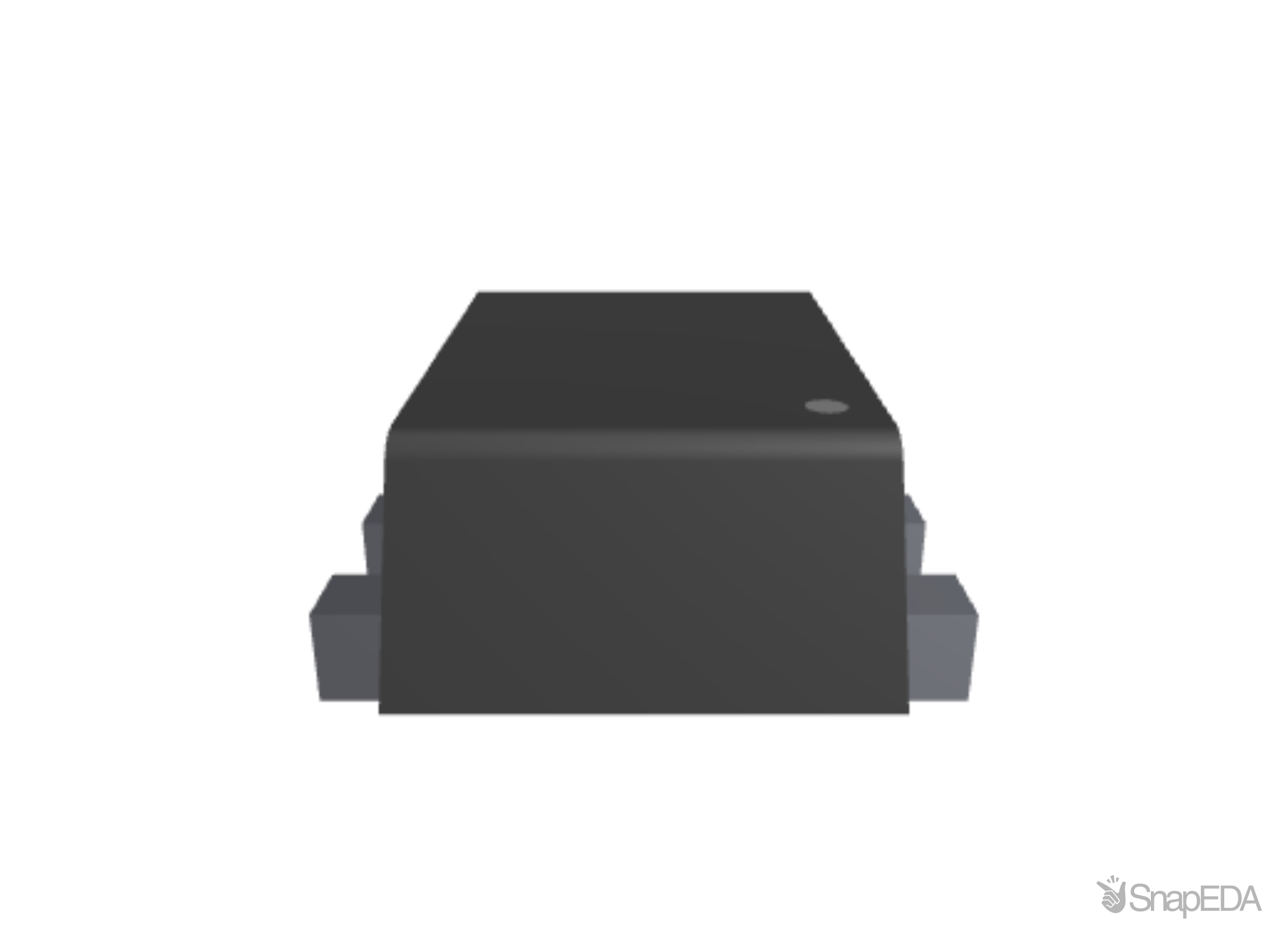

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the VT6M1T2CR
| Part Name | VT6M1T2CR |
| Manufacturer | Rohm |
| RoHS | True |
| Life Cycle Status | Not Recommended for New Designs |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Drain Source Voltage (V) | 20 V |
| Width | 1.02 (mm) |
| Maximum Continuous Drain Current (A) | 100 mA |
| Mounting Type | Surface Mount |
| Maximum Gate Source Voltage (V) | -10 V, -8 V, +10 V, +8 V |
| Series | VT6M1 |
| Maximum Power Dissipation | 150 mW |
| Length | 1.24 (mm) |
| Height | 0.5 (mm) |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage (V) | 1 (V) |
| Maximum Drain Source Resistance | 18 Ω |
| Package Type | VMT |
| Number Of Elements Per Chip | 2 |
| Minimum Operating Temperature | -55 °C |
| Minimum Gate Threshold Voltage (V) | 0.3 (V) |
| Forward Diode Voltage (V) | 1.2 (V) |
| Channel Type | N, P |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 6 |
| Transistor Configuration | Dual Base |
