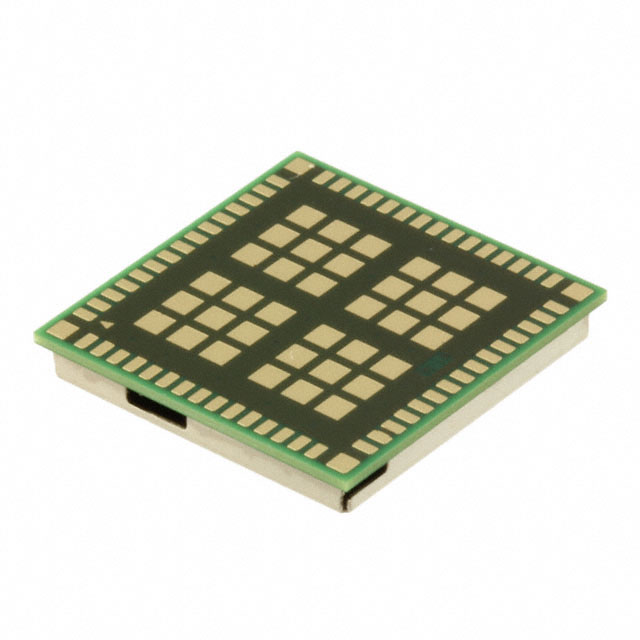

WL1835MODGBMOCT
WiLink™ 8 single band combo 2x2 MIMO Wi-Fi®, Bluetooth® & Bluetooth Smart module
Availability: In Stock
Package Type: QFM-100
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the WL1835MODGBMOCT by Texas Instruments and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the WL1835MODGBMOCT
| Part Name | WL1835MODGBMOCT |
| Manufacturer | Texas Instruments |
| MOQ | 1 |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | Surface Mount |
| Maximum Operating Supply Voltage (V) | 4.8 V |
| Minimum Operating Supply Voltage (V) | 2.9 V |
| Maximum Operating Band 1 Frequency | 2.48 (GHz) |
| Height | 2 (mm) |
| Modulation Technique | GFSK |
| Width | 13.4 (mm) |
| Length | 13.5 (mm) |
| Minimum Operating Temperature | -20 °C |
| Number Of Operating Bands | 1 |
| Minimum Operating Band 1 Frequency | 2.4 (GHz) |
| Maximum Operating Temperature | +70 °C |
| Pin Count | 100 |
| Dimensions | 13.5 x 13.4 x 2 (mm) |
Inventory for the WL1835MODGBMOCT by Texas Instruments from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
124
|
14 x $22.19
|
Visit Site | |
|
★ Featured
|
295
|
|
Visit Site | |
|
★ Featured
|
3,290
|
15 x $20
|
Visit Site | |
| Texas Instruments |
499
|
|
Visit Site | |
| Verical |
45
|
|
Visit Site |
No issues have been reported for the WL1835MODGBMOCT
If you experienced any issues with the symbol or footprint, please report it.
