WSL36373L000FEA
Metal Strip Low Ohmic Smnt Resistor 3637 Case 3mOhm +/-1% 3W +/-50ppm/degC | Vishay Dale WSL36373L000FEA
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the WSL36373L000FEA by Vishay Dale and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

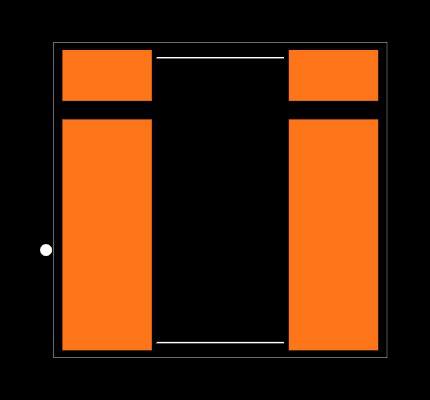

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the WSL36373L000FEA
| Part Name | WSL36373L000FEA |
| Manufacturer | Vishay |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Package Case | 3637 |
| Series | WSL |
| Resistance | 3 (mΩ) |
| Temperature Coefficient | ±50 (ppm/°C) |
| Technology | Metal Strip |
| Minimum Operating Temperature | -65 (°C) |
| Power Rating | 3 (W) |
| Maximum Operating Temperature | +170 (°C) |
| Tolerance | ±1 (%) |
