X9C103SZ
Digital Potentiometer 10k Ohm 1 Circuit 100 Taps Up/Down (U/D, INC, CS) Interface 8-SOIC
Availability: Out of Stock
Package Type: SOIC-8
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the X9C103SZ by Renesas and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

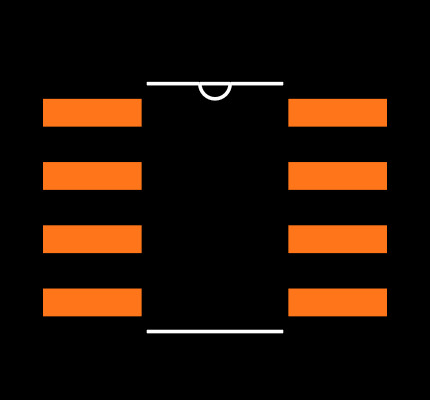

Footprint
No web preview
This Footprint is Available for

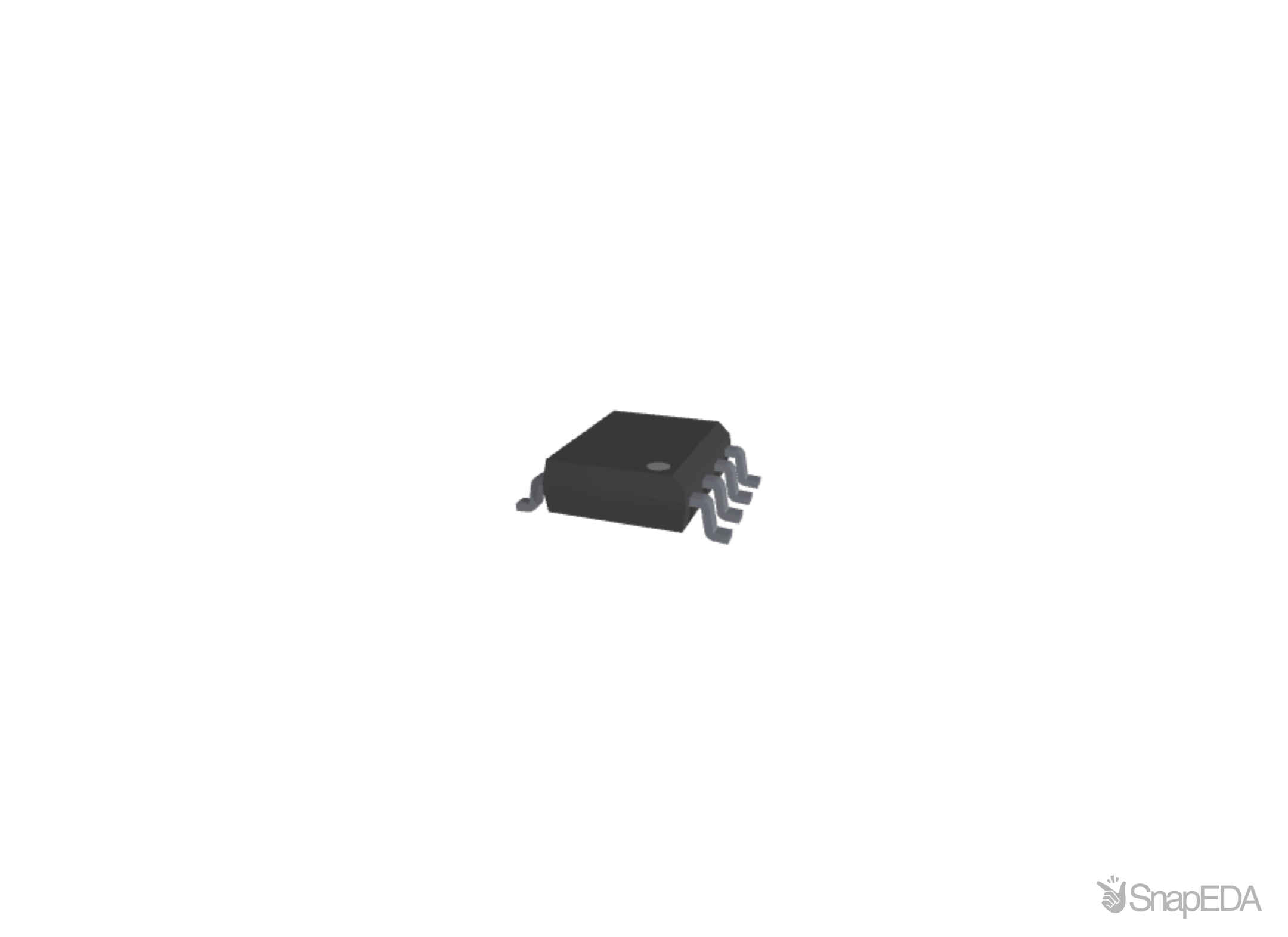

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the X9C103SZ
| Part Name | X9C103SZ |
| Manufacturer | Renesas Electronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pin Count | 8 |
| Dimensions | 5 x 4 x 1.5 (mm) |
| Mounting Type | Surface Mount |
| Taper Type | Linear |
| Power Supply Type | Single |
| Resistance Value | 10 (kΩ) |
| Length | 5 (mm) |
| Height | 1.5 (mm) |
| Memory Type | Non-Volatile |
| Width | 4 (mm) |
| Typical Single Supply Voltage (V) | 5 V |
| Package Type | SOIC |
| Minimum Operating Temperature | 0 °C |
| Control Interface | Serial-3 Wire |
| Maximum Operating Temperature | +70 °C |
| Number Of Positions | 100 |
| Number Of Pots Per Package | 1 |
No issues have been reported for the X9C103SZ
