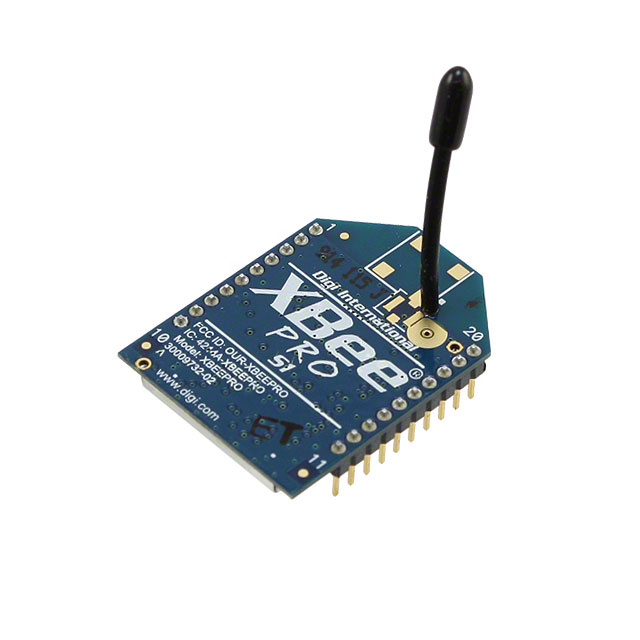

XBP24-AWI-001
802.15.4 - Transceiver Module 2.4GHz Integrated, Wire Antenna Through Hole
Availability: In Stock
Package Type: MODULE
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the XBP24-AWI-001 by Digi International and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the XBP24-AWI-001
| Part Name | XBP24-AWI-001 |
| Manufacturer | Digi International |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Protocol Type | Xbee |
| Receiver Sensitivity | -100 (dBm) |
| Supported Bus Interfaces | UART |
| Dimensions | 32.94 x 24.38 x 2.82 (mm) |
| Supported Network Interfaces | Serial, WPAN |
| Length | 32.94 (mm) |
| Height | 2.82 (mm) |
| Width | 24.38 (mm) |
| Maximum Output Power | +18 (dBm) |
| Supply Voltage (V) | 2.8 → 3.4 (V) |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
Inventory for the XBP24-AWI-001 by Digi International from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
N/A | Visit Site | |
| Braemac Americas |
2
|
1 x $32
|
Visit Site | |
| Farnell UK |
|
1 x $32.12
|
Visit Site | |
| Mouser |
|
N/A | Visit Site |
No issues have been reported for the XBP24-AWI-001
