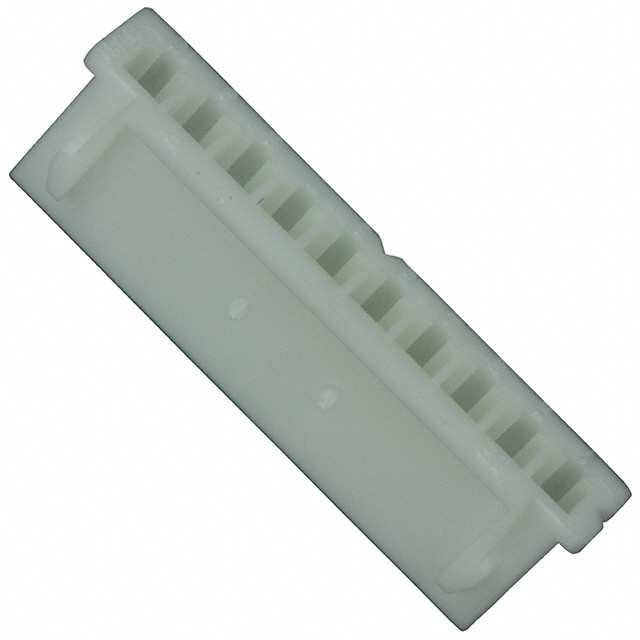

XHP-10
10 Rectangular Connectors - Housings Receptacle Natural 0.098" (2.50mm)
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the XHP-10 by JST and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the XHP-10
| Part Name | XHP-10 |
| Manufacturer | JST Sales |
| RoHS | True |
| Life Cycle Status | New Product |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | Cable Mount |
| Gender | Female |
| Series | XHP |
| Body Orientation | Straight |
| Housing Material | Polyamide |
| Width | 5.7 (mm) |
| Length | 27.3 (mm) |
| Number Of Rows | 1 |
| Pitch | 2.5 (mm) |
| For Use With | XH Series Dis-Connectable Crimp Style Connector |
| Number Of Contacts | 10 |
