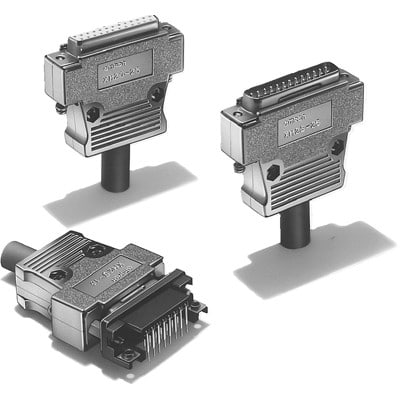

XM3D-2521
Connectors, D-Sub, Standard, D-Sub Connector | Omron Electronic Components XM3D-2521
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the XM3D-2521 by Omron and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the XM3D-2521
| Part Name | XM3D-2521 |
| Manufacturer | Omron |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Mounting Type | Panel Mount |
| Series | XM3D |
| Body Orientation | Straight |
| D Sub Shell Size | B |
| D Connector Type | Standard D-Sub |
| Gender | Female |
| Termination Method | Solder Cup |
| Number Of Contacts | 25 |
