XR2206CP-F
Function Generator IC 1MHz 1 16-DIP (0.300", 7.62mm)
Availability: Out of Stock
Package Type: PDIP-16
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the XR2206CP-F by MaxLinear and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

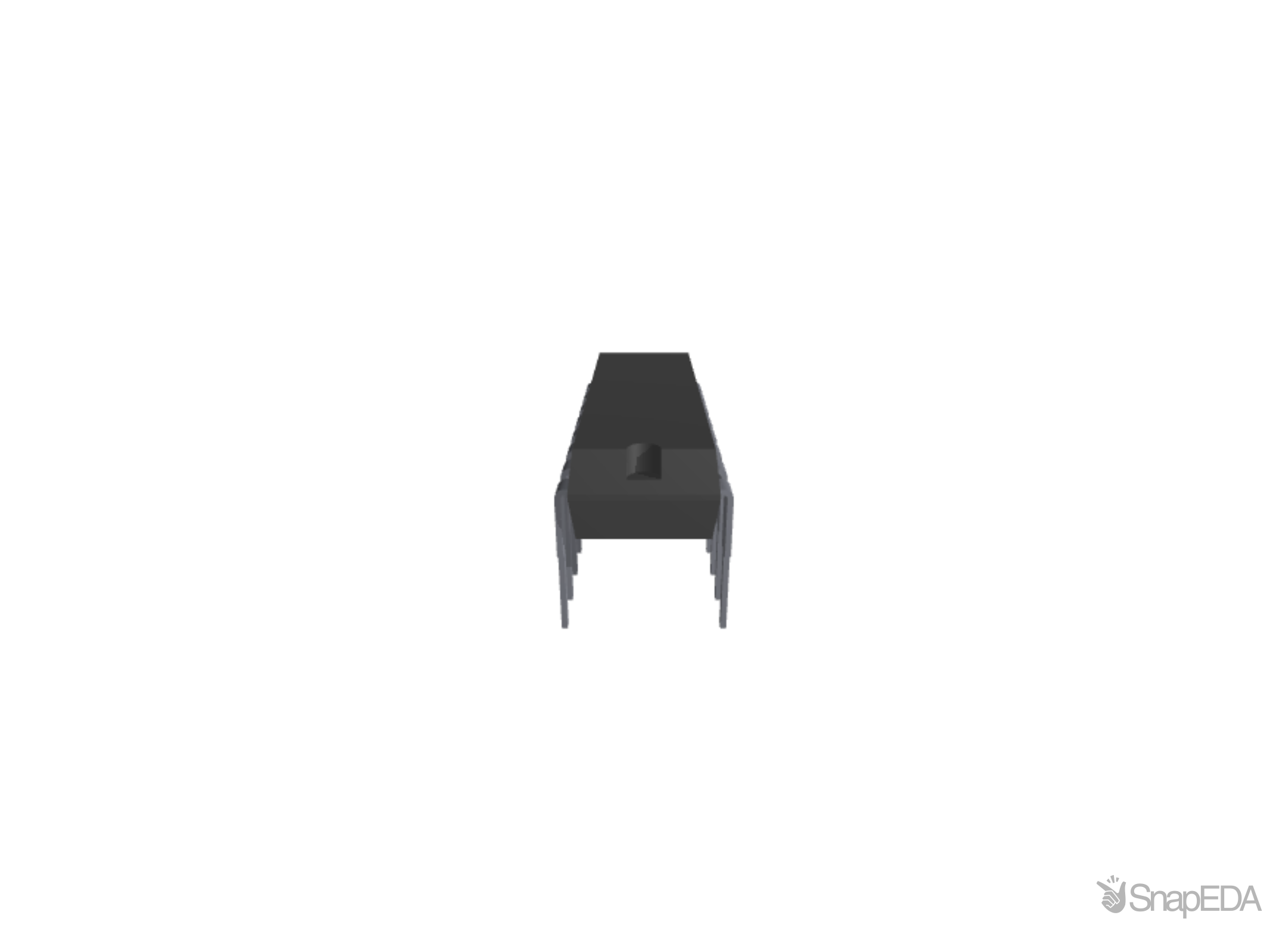

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the XR2206CP-F
| Part Name | XR2206CP-F |
| Manufacturer | MaxLinear, Inc. |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 21.34 x 7.11 x 4.95 (mm) |
| Mounting Type | Through Hole |
| Height | 4.95 (mm) |
| Width | 7.11 (mm) |
| Length | 21.34 (mm) |
| Package Type | PDIP |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
| Pin Count | 16 |
No issues have been reported for the XR2206CP-F
