XRCGB25M000FAN00R0

Name: XRCGB25M000FAN00R0
Brand: Murata

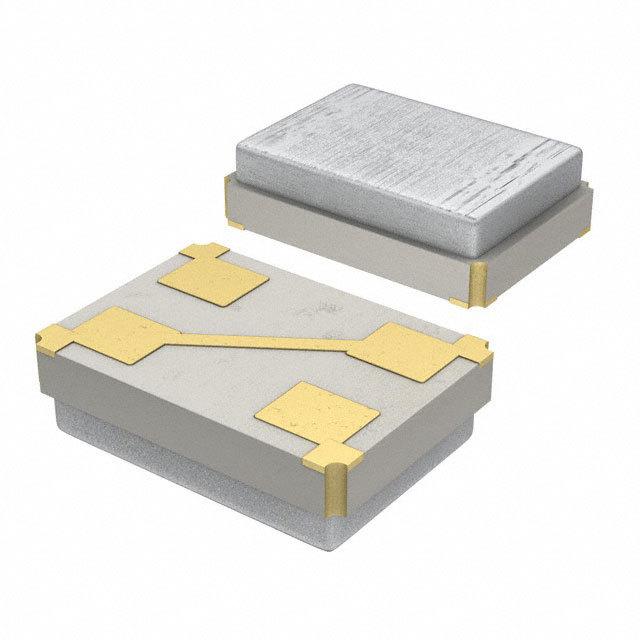

25 MHz ±25ppm Crystal 6pF 150 Ohms 4-SMD, No Lead

Availability: In Stock

Package Type: SMD-4

CAD Models: Symbol, Footprint, 3D Model

Check availability

Check availability

Add to Library See Datasheet PDF Pricing Pinout

What is SnapMagic Search?

SnapMagic Search is a free library of symbols & footprints for the XRCGB25M000FAN00R0 by Murata and for millions of electronic components.

Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.

Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

Symbol and Footprint
3D Model
Alternates

Symbol

No web preview

This Symbol is Available for

This symbol was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

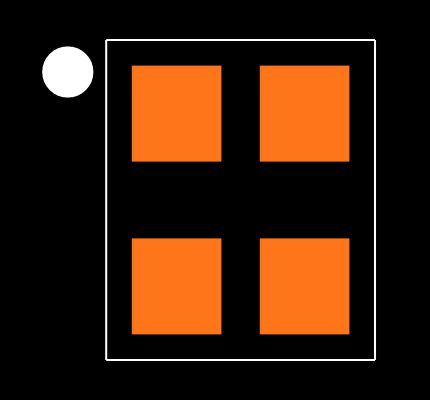

Footprint

No web preview

This Footprint is Available for

This footprint was not created by SnapMagic Search, please be cautious when using it in your design

Downloaded times

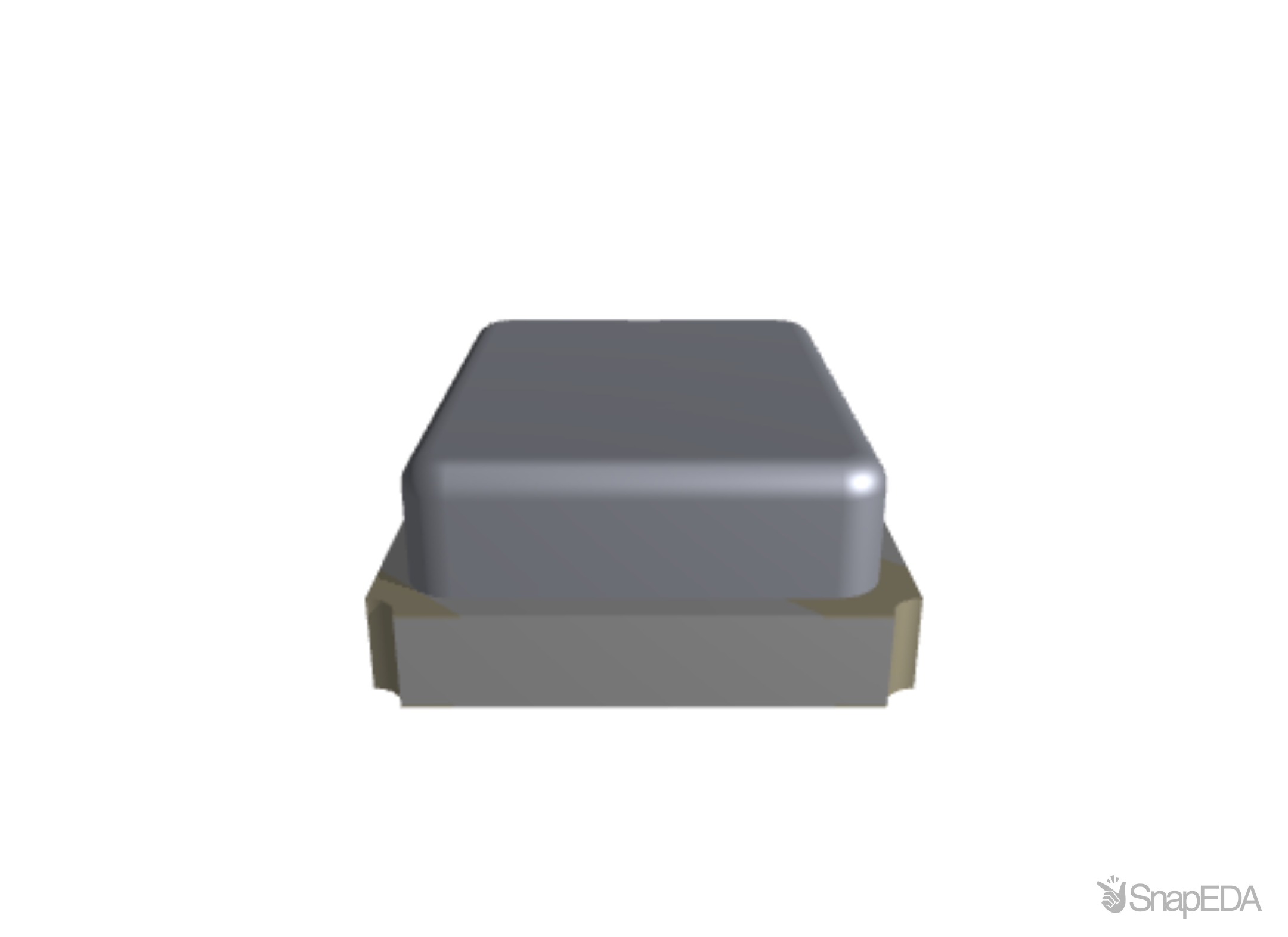

3D Model

Preview not available

Note: If you're using IE or Edge, right-click and choose "Save as" to download.

Relevant part with 2D models

Download Part

Verification

Issues

Specs

Pricing

No issues have been reported for the XRCGB25M000FAN00R0

If you experienced any issues with the symbol or footprint, please report it.

New Issue

Specifications for the XRCGB25M000FAN00R0

Part Name	XRCGB25M000FAN00R0
Manufacturer	Murata Electronics
Category	Crystal Units
RoHS	True
Product Link	https://www.murata.com/en-us/products/productdetail?partno=XRCGB25M000FAN00R0
Formats Available for Symbols and Footprints	Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus
Datasheet	See Datasheet PDF
Series Resistance	150 (Ω)
Frequency Tolerance	±25 (ppm)
Dimensions	2 x 1.6 x 0.65 (mm)
Mounting Type	Surface Mount
Height	0.65 (mm)
Width	1.6 (mm)
Length	2 (mm)
Package Type	SMD
Minimum Operating Temperature	-10 (°C)
Load Capacitance	6 (pF)
Maximum Operating Temperature	70 (°C)
Pin Count	4
Standard Frequency	25 (MHz)
