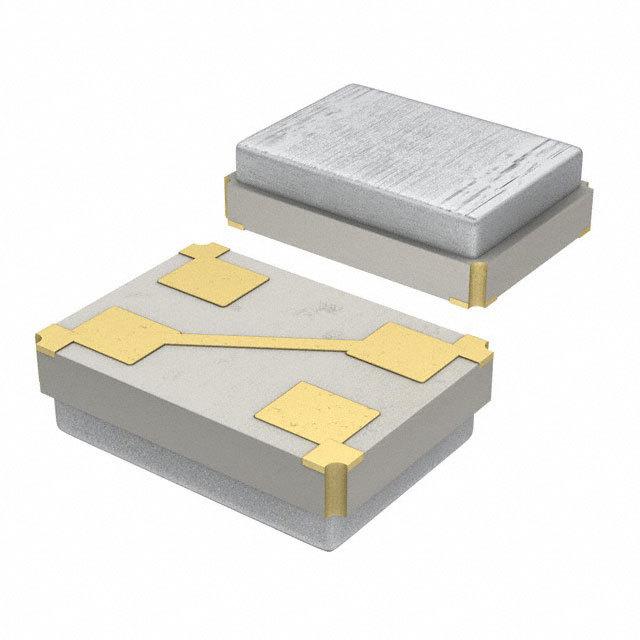

XRCGB40M000F4M00R0
40 MHz ±45ppm Crystal 6pF 100 Ohms 4-SMD, No Lead
Availability: Out of Stock
Package Type: SMD-4
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the XRCGB40M000F4M00R0 by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

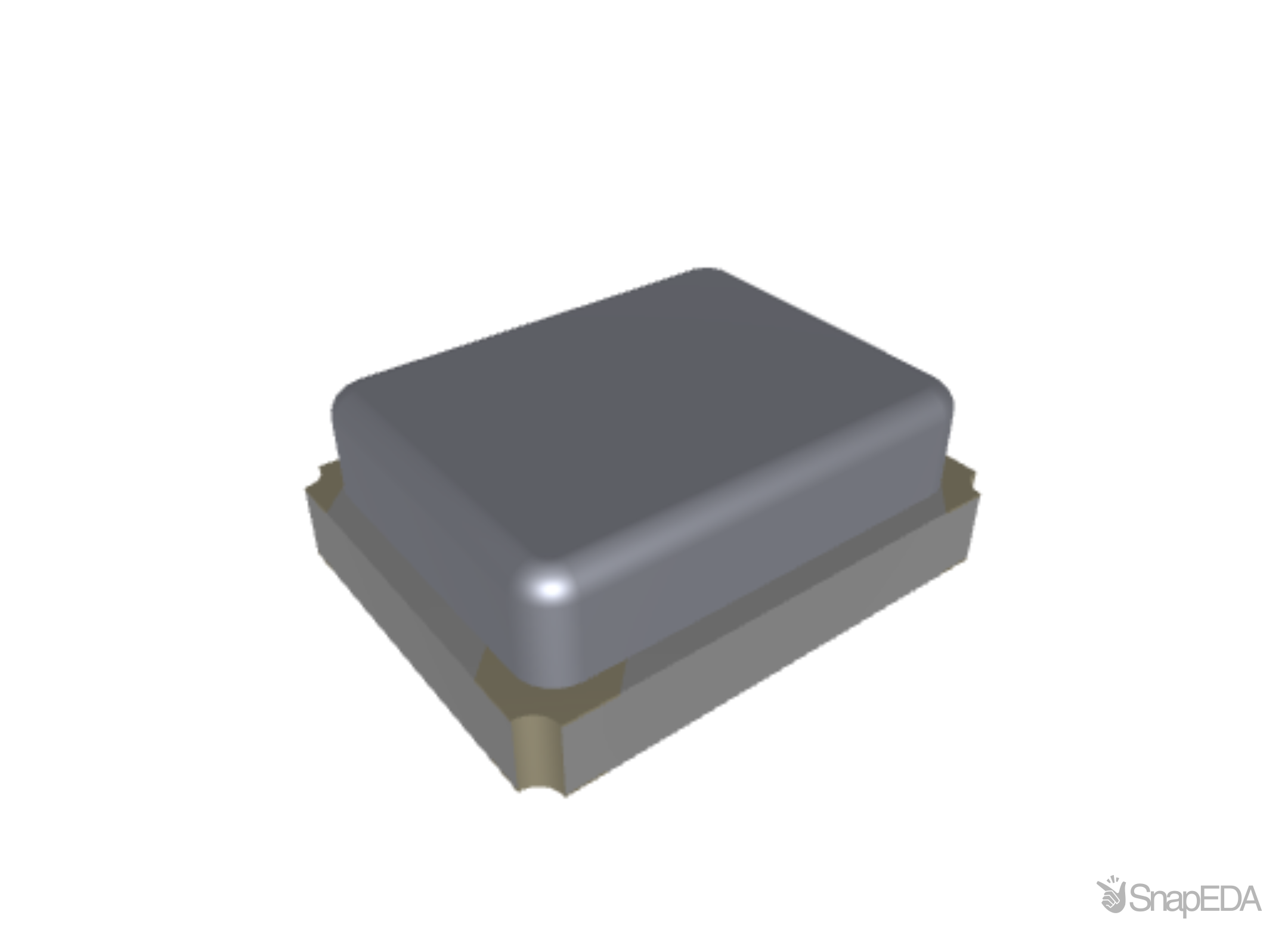

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the XRCGB40M000F4M00R0
| Part Name | XRCGB40M000F4M00R0 |
| Manufacturer | Murata Electronics |
| Sample Link | https://my.murata.com/en/web/samplerequest/cart-requesthistory?pno=XRCGB40M000F4M00R0 |
| RoHS | True |
| Product Link | https://www.murata.com/en-us/products/productdetail?partno=XRCGB40M000F4M00R0 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pin Count | 4 |
| Dimensions | 2 x 1.6 x 0.7 (mm) |
| Mounting Type | Surface Mount |
| Height | 0.7 (mm) |
| Frequency Stability | ±40 (ppm) |
| Width | 1.6 (mm) |
| Length | 2 (mm) |
| Package Type | SMD |
| Minimum Operating Temperature | -30 (°C) |
| Maximum Operating Temperature | 85 (°C) |
| Load Capacitance | 6 (pF) |
No issues have been reported for the XRCGB40M000F4M00R0
