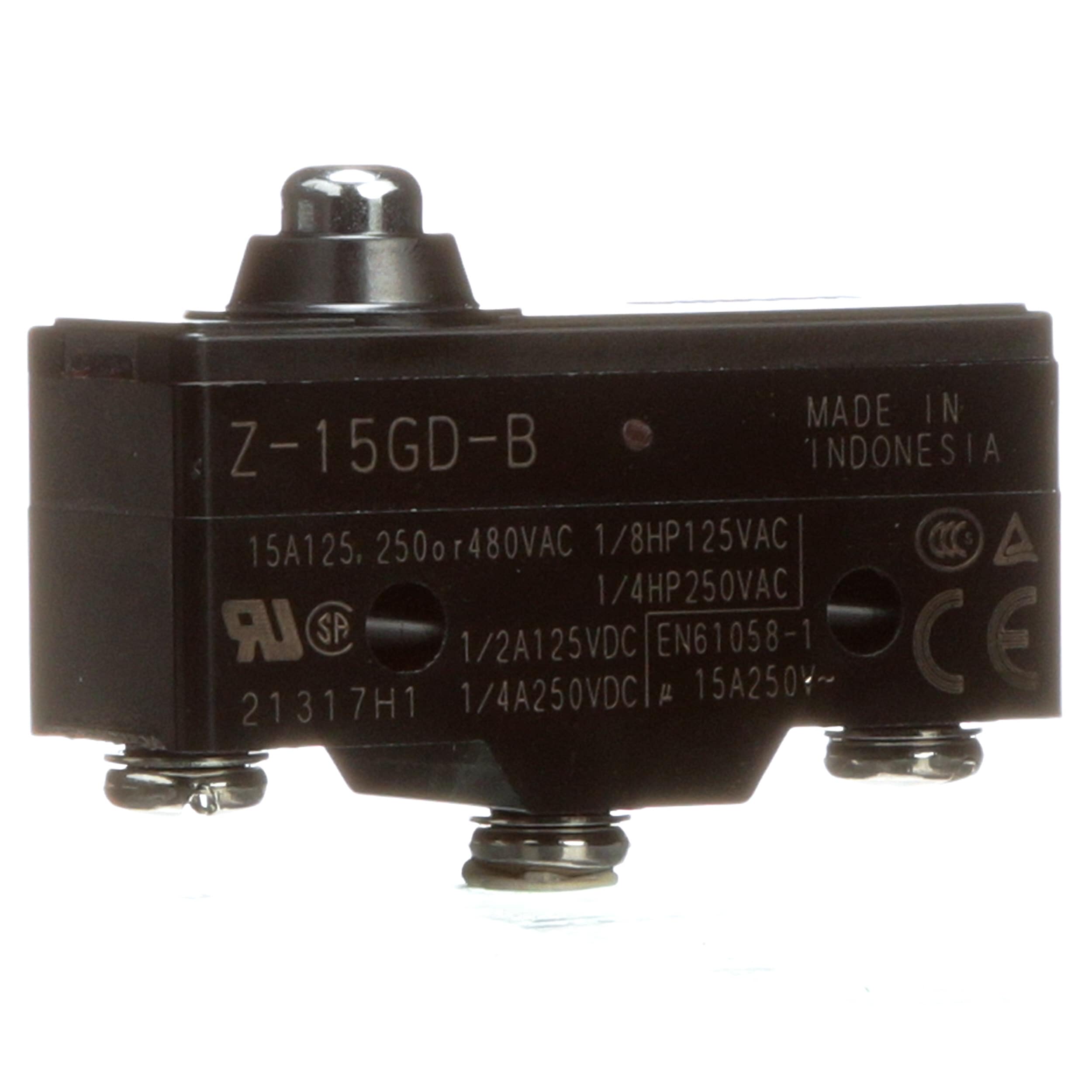

Z-15GD-B
SWITCH GENERAL PURPOSE SNAP ACTION SCREW TERMINALS SHORT SPRING PLUNGER ACT. | Omron Automation Z-15GD-B
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the Z-15GD-B by Omron and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the Z-15GD-B
| Part Name | Z-15GD-B |
| Manufacturer | Omron |
| Category | Switches |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Voltage (V) | 250 (V) |
| Maximum Ac Voltage (V) | 500 (V) |
| Width | 49.2 (mm) |
| Minimum Operating Temperature | -25 (°C) |
| Maximum Current (A) | 15 (A) |
| Ip Rating | IP00 |
| Depth | 17.45 (mm) |
| Pole And Throw Configuration | SPDT |
| Action Type | Snap Action |
| Length | 24.2 (mm) |
| Actuator Type | Plunger |
| Normal State Configuration | NO/NC |
| Mechanical Life | 10000000 (Cycles) |
| Maximum Operating Temperature | +80 (°C) |
Inventory for the Z-15GD-B by Omron from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
733
|
|
Visit Site | |
|
★ Featured
|
431
|
|
Visit Site | |
| RS Americas |
288
|
|
Visit Site | |
| Verical |
13
|
3 x $28.55
|
Visit Site |
No issues have been reported for the Z-15GD-B
