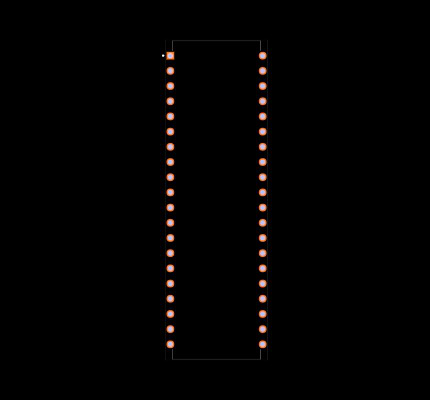

Symbol and Footprint for this part were not created by SnapMagic, if you would like our team to create this part for you then
Request Now

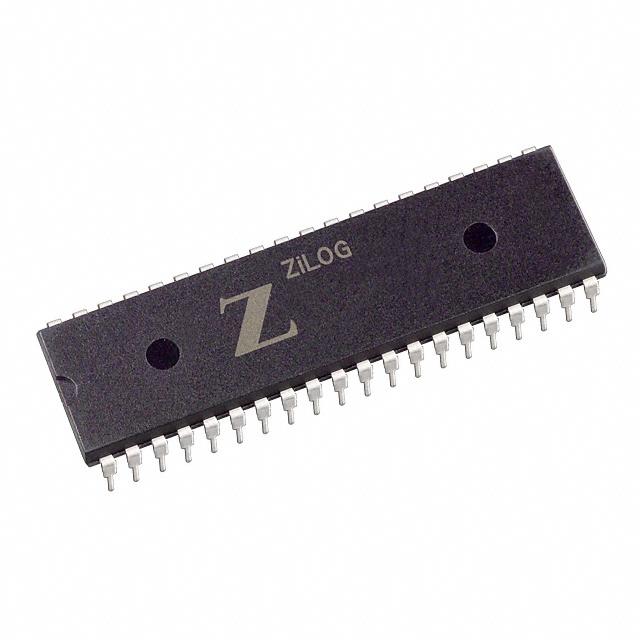

Z84C0008PEG
Z80 Microprocessor IC series 1 Core, 8-Bit 8MHz 40-PDIP
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the Z84C0008PEG by Zilog and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the Z84C0008PEG
| Part Name | Z84C0008PEG |
| Manufacturer | Zilog |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 62.74 x 14.22 x 4.19 (mm) |
| Number Of Ethernet Channels | 0 |
| Width | 14.22 (mm) |
| Number Of Pci Channels | 0 |
| Number Of Can Channels | 0 |
| Number Of Spi Channels | 0 |
| Data Bus Width | 8 (bit) |
| Instruction Set Architecture | CISC |
| Program Memory Type | ROMLess |
| Package Type | PDIP |
| Maximum Frequency | 8 (MHz) |
| Maximum Operating Temperature | +100 °C |
| Family Name | Z80 |
| Device Core | Z8 |
| Length | 62.74 (mm) |
| Usb Channels | 0 |
| Number Of Lin Channels | 0 |
| Pin Count | 40 |
| Mounting Type | Through Hole |
| Number Of I2C Channels | 0 |
| Height | 4.19 (mm) |
| Typical Operating Supply Voltage (V) | 4.5 → 5.5 V |
| Minimum Operating Temperature | -40 °C |
| Number Of Usart Channels | 0 |
| Number Of Uart Channels | 0 |
