ZBE102
Single Contact Block, 22mm, 1NC, 6 A, 600V, Screw Terminal, Harmony XB4 Series | Schneider Electric ZBE102
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ZBE102 by Schneider Electric and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available

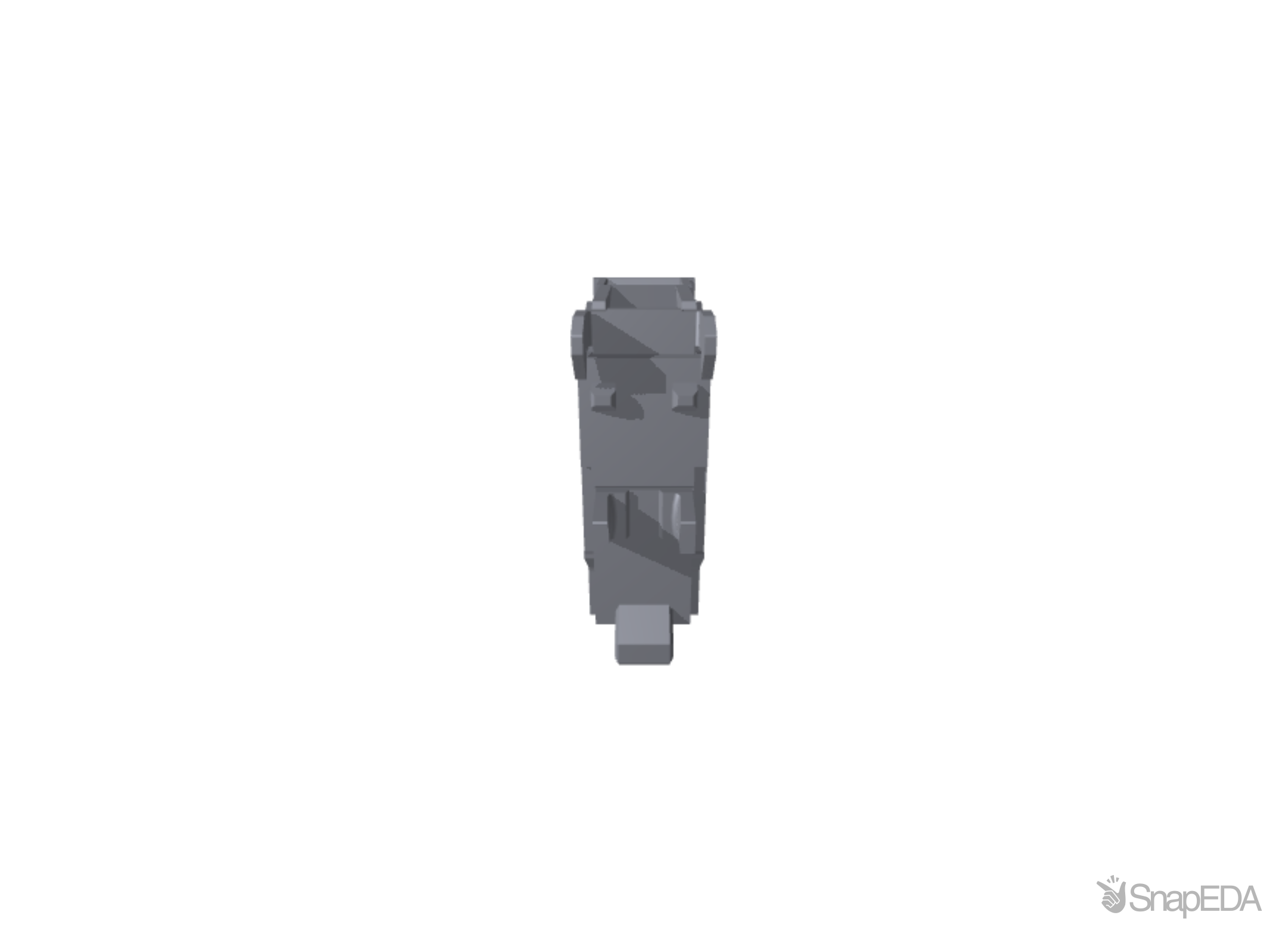

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ZBE102
| Part Name | ZBE102 |
| Manufacturer | Schneider Electric |
| Category | Switches |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Body Fixing Collar Included | No |
| Better World Verification | Green Premium |
| Better World Product | Yes |
| Current Rating (A) | 10 (A) |
| Voltage Rating (V) | 600 (V ac) |
| Series | Harmony XB |
| Contact Configuration | SPST |
| Block Type | Contact Block |
| Led Included | No |
| Distrelec Product Id | 13512291 |
| Terminal Type | Screw |
