ZMY12-GS08

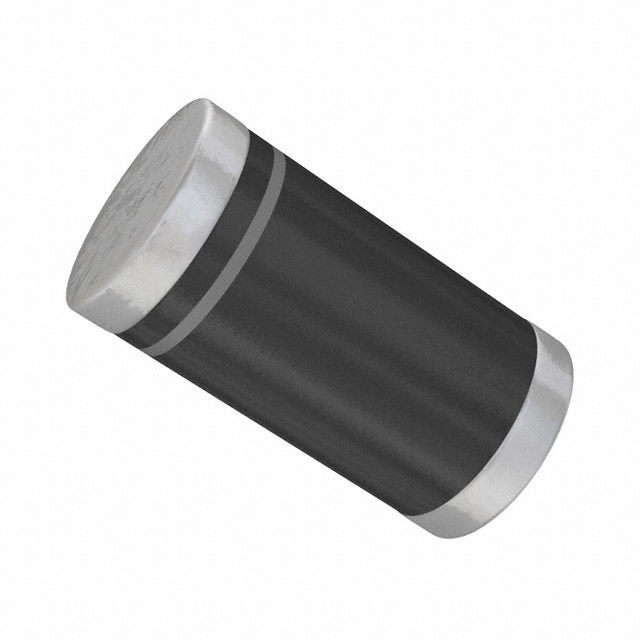

Zener Diode 12 V 1 W ±5% Surface Mount DO-213AB
Availability: Out of Stock
Package Type: DO-213
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ZMY12-GS08 by Vishay and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ZMY12-GS08
| Part Name | ZMY12-GS08 |
| Manufacturer | Vishay Semiconductor |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Nominal Zener Voltage (V) | 12 (V) |
| Dimensions | 2.6 (Dia.) x 5.2 (mm) |
| Mounting Type | Surface Mount |
| Maximum Zener Impedance | 7 (Ω) |
| Typical Voltage Temperature Coefficient (V) | 5 mV/°C, 10 (mV/°C) |
| Diode Configuration | Single |
| Maximum Reverse Leakage Current (A) | 500 (nA) |
| Maximum Power Dissipation | 1 W |
| Zener Type | General Purpose |
| Number Of Elements Per Chip | 1 |
| Package Type | MELF |
| Zener Voltage Tolerance (V) | 5 (%) |
| Maximum Operating Temperature | +175 °C |
| Pin Count | 2 |
| Test Current (A) | 50 (mA) |
