ZPD20B

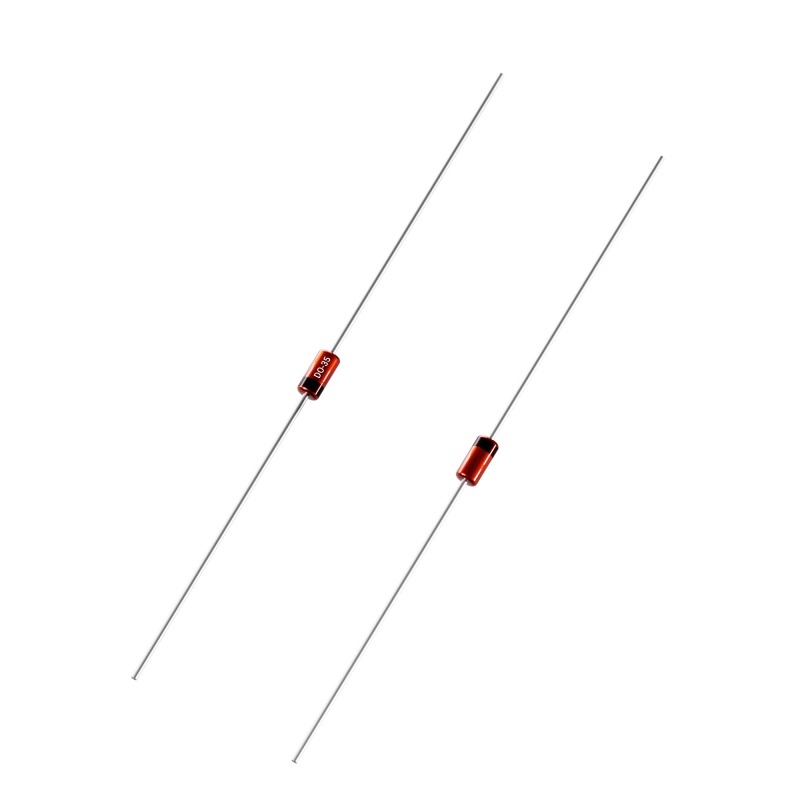

Zener, DO-35, 20V, 0.5W, ±2%
Availability: In Stock
Package Type: DO-35
CAD Models: Symbol, Footprint, 3D Model
