ZSS12501SD478
SnapVerified

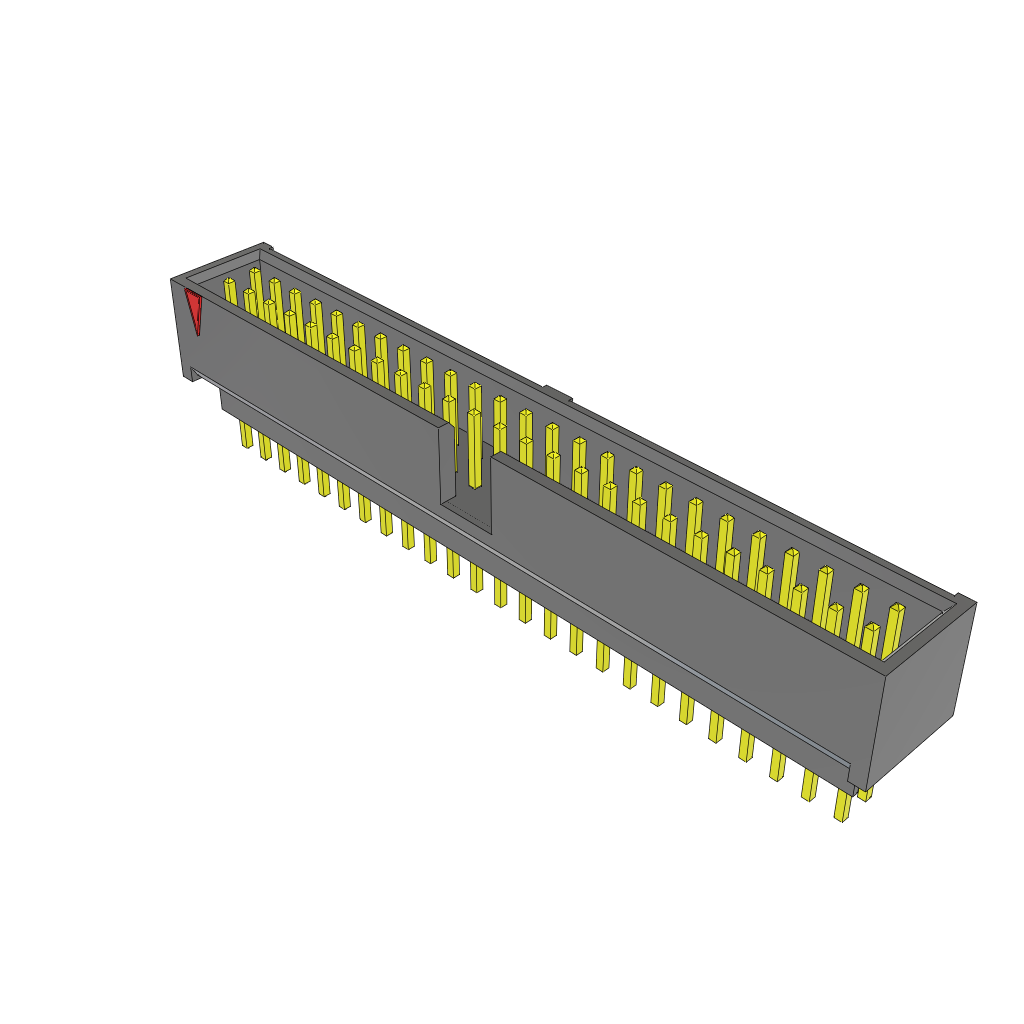

HEADER, 50 CONTACTS, 2 ROWS, THROUGH HOLE, 2.54 MM; Connector Systems:Board-to-Board; Pitch Spacing:2.54mm; No. of Rows:2Rows; No. of Contacts:50Contacts; Contact Termination Type:Through Hole; Product Range:Flex Stack ZSS Series RoHS Compliant: Yes
Availability: In Stock
Country of Origin: United States
CAD Models: Symbol and Footprint
Get this part
Arrival in under 3 days
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ZSS12501SD478 by Samtec and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ZSS12501SD478
| Part Name | ZSS12501SD478 |
| Manufacturer | Samtec |
| HTS Number | 8536.69 |
| Packaging | Layer |
| Series | ZSS |
| Country of Origin | United States |
| ECCN Category | EAR99 |
| RoHS | True |
| Life Cycle Status | Production |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the ZSS12501SD478 by Samtec from major distributors.
