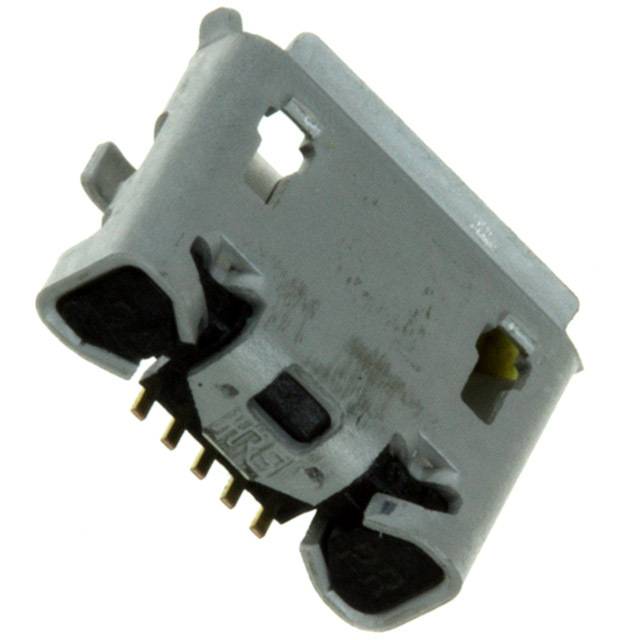

ZX62-B-5PA(33)
SnapVerified
USB - micro B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ZX62-B-5PA(33) by Hirose and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Design & more
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ZX62-B-5PA(33)
| Part Name | ZX62-B-5PA(33) |
| Manufacturer | Hirose |
| Orientation | Right angle |
| Temperature Range Max. | 85℃ |
| Temperature Range Min. | -30℃ |
| Product Link | https://www.hirose.com/en/product/p/CL0242-0033-8-33 |
| Type | Receptacle |
| Pin Count | 5 |
| RoHS | TRUE |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Usb Version | 2.0 |
| Mounting Type | Surface Mount |
| Voltage Rating (V) | 30.0 V |
| Series | ZX |
| Body Orientation | Straight |
| Usb Type | Micro B |
