Terminal Ring Tongue 4AWG Stud Sz 3/8, Solistrand Series | TE Connectivity 33471
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 33471 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

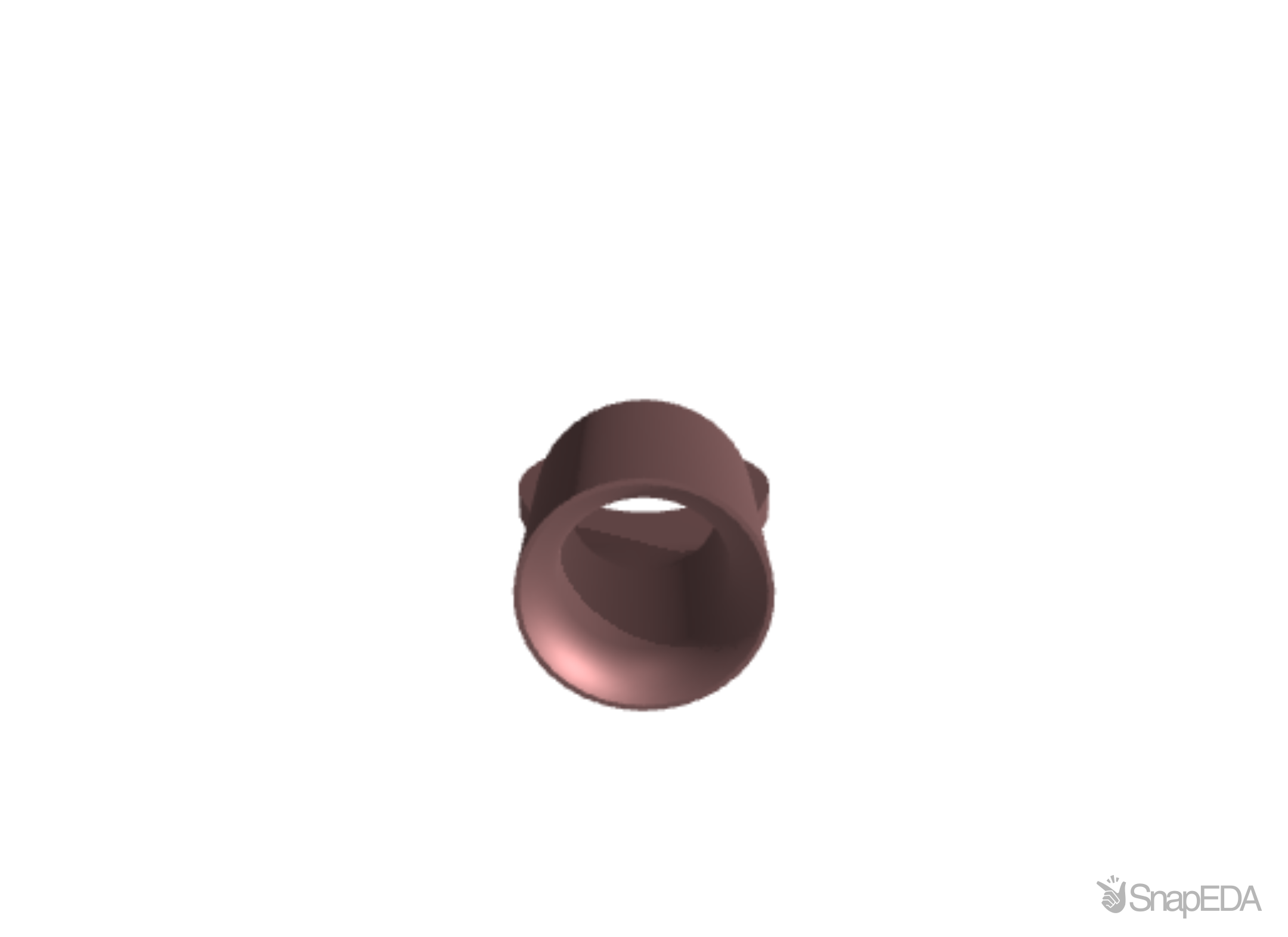

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 33471
| Part Name | 33471 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Current Rating (A) | 1 |
| Inspection Slot | No |
| Operating Temperature Range | 170 |
| Terminal & Splice Type | Ring Tongue |
| Barrel Type | Closed Barrel |
| Packaging Method | Loose Piece |
| Packaging Quantity | 100 |
| Support Style | Non - Insulation Support |
| Terminal Orientation | Offset |
| Wire/Cable Type | Regular Wire |
| Terminal Angle | Straight |
| Number of Holes | 1 |
| Shape Description | RING-048 |
| Insulated | No |
| Wire Size | 33100 – 52600 |
| Barrel Inside Diameter | 7.518 |
| Plating Material | Copper |
| Heavy Duty | No |
| Government Qualified | No |
| TE Internal Number | 33471 |
| Stud Size | 3/8 |
| Stud Diameter | 9.91 |
| Overall Length | 33.38 |
| Tongue Thickness | 1.78 |
| Sealable | No |
| Wire Insulation Support | Without |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
