5747846-6
AMPLIMITE HD-20 Series,25Way RightAngle Mount PCB D-sub Conn Socket,2.75mm Pitch | TE Connectivity 5747846-6
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5747846-6 by TE Connectivity AMP Connectors and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

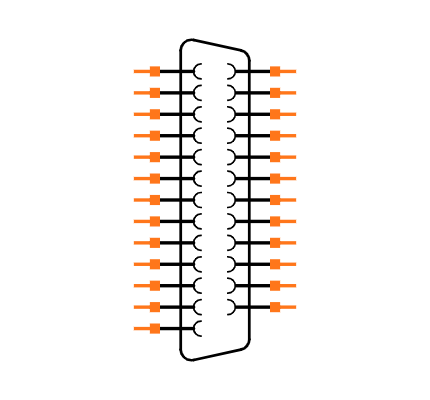

Symbol
No web preview
This Symbol is Available for

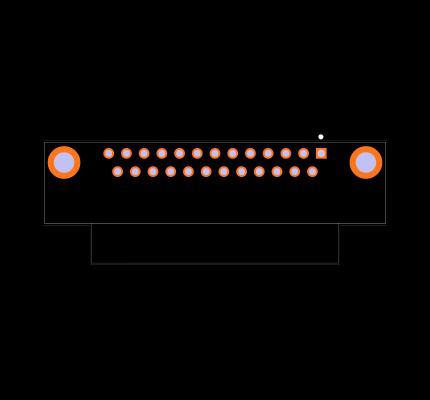

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
Verification | Issues | Specs | Pricing |
Specifications for the 5747846-6
Part Name | 5747846-6 |
Manufacturer | TE Connectivity |
Shell Plating Material | Tin |
Category | Connectors |
Centerline (Pitch) | 2.77 |
Grounded | No |
Shell Material | Carbon Steel |
Circuit Application | Signal |
Plastic | No |
Housing Material | Thermoplastic |
Row-to-Row Spacing | 2.84 mm |
Female Screwlock Material | Zinc |
Shell Size | 3 |
Connector Style | Receptacle |
Mating Connector Lock Type | Female Screwlocks, Fixed |
Connector & Contact Terminates To | Printed Circuit Board |
PCB Mount Retention Type | Boardlock |
Profile | Standard |
PCB Mount Retention | With |
PCB Thickness (Recommended) | .062 |
Eyelet Plating Material | Tin |
TE Internal Number | 5747846-6 |
PCB Mount Orientation | Right Angle |
Connector System | Board-to-Board |
Number of Rows | 2 |
Grounding Straps | With |
Housing Color | Black |
Footprint | 8.08 |
Contact Base Material | Phosphor Bronze |
Boardlock Plating Material | Tin over Nickel |
Contact Shape | Round |
Female Screwlock Plating Material | Clear Chromate |
Operating Temperature Range | -67 – 221 |
Mounting Hole Diameter | .125 |
Packaging Method | Tray |
Packaging Quantity | 65 |
Grounding Indents | Without |
Number of Positions | 25 |
Contact Mating Area Plating Material | Gold |
PCB Mounting Style | Through Hole |
Insert Material | Zinc |
Mating Retention | With |
Boardlock Material | Brass |
Sealable | No |
Termination Post Length | .125 |
Shell Type | Front Metal Shell |
PCB Mount Alignment | With |
Post Size | .026 |
Grounding Clips | Without |
Eyelet Material | Brass |
Connector Mounting Type | Board Mount |
Panel Mount Feature | Without |
Contact Current Rating (Max) (A) | 6 |
Contact Mating Area Plating Thickness | 30 |
Product Type | Connector |
UL Flammability Rating | UL 94V-0 |
PCB Contact Termination Area Plating Material | Tin |
Preloaded | Yes |
Mating Connector Lock | With |
Mating Retention Type | Screw |
Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
Datasheet | See Datasheet PDF |
