A29400-051
SnapVerified

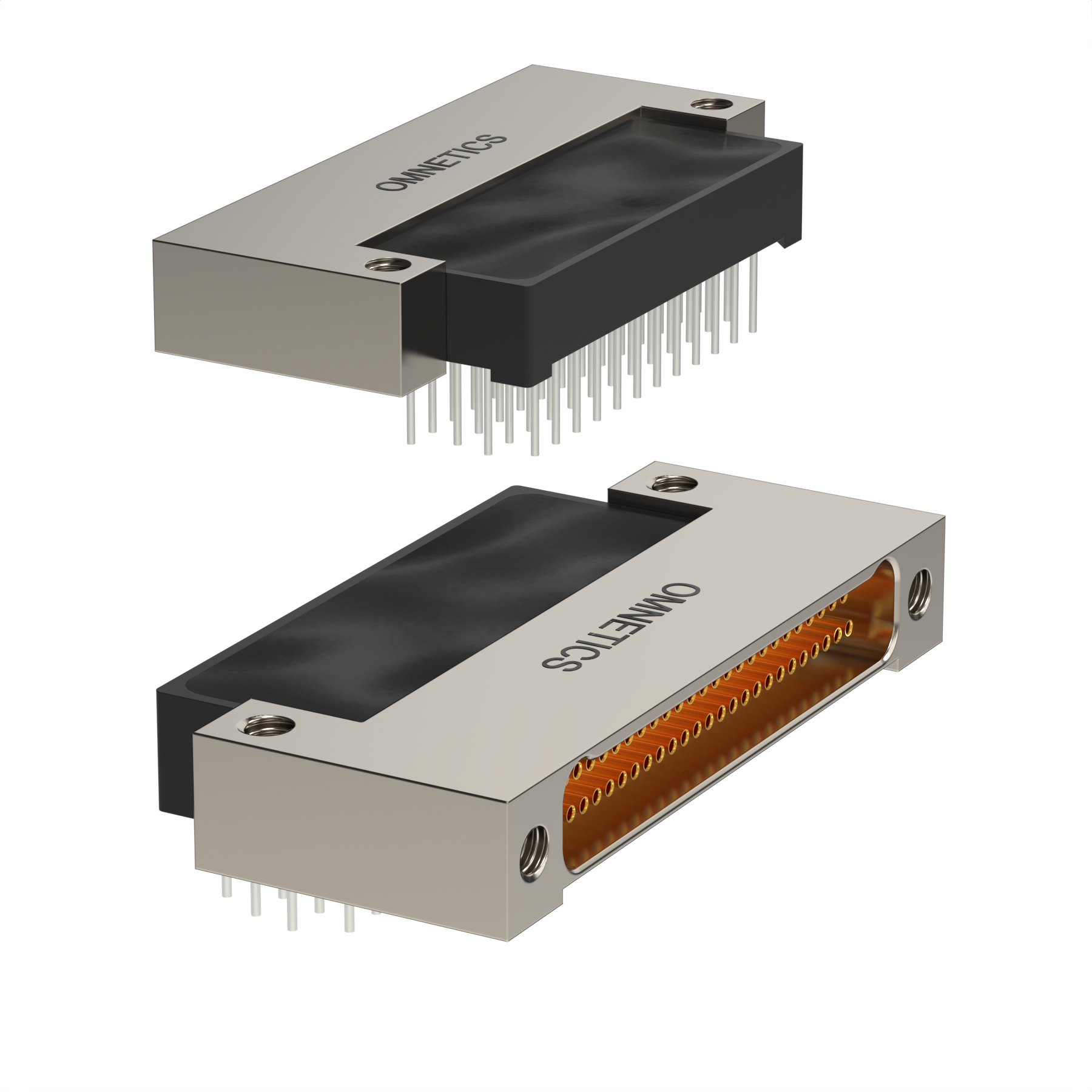

MNSO-51-H4-.11-N-ETH-M, Nano-D Dual Row 51 Socket Contact Horizontal Thru Hole (4 Row) Receptacle Connector w/ #0-80 End Threaded Holes
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the A29400-051 by Omnetics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

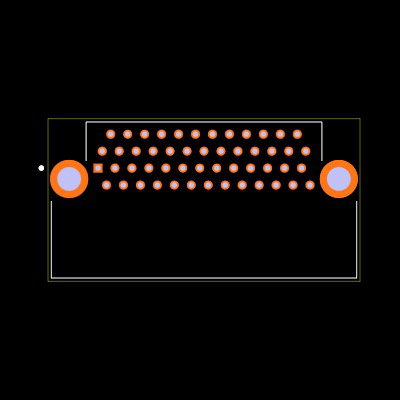

Footprint
No web preview
This Footprint is Available for

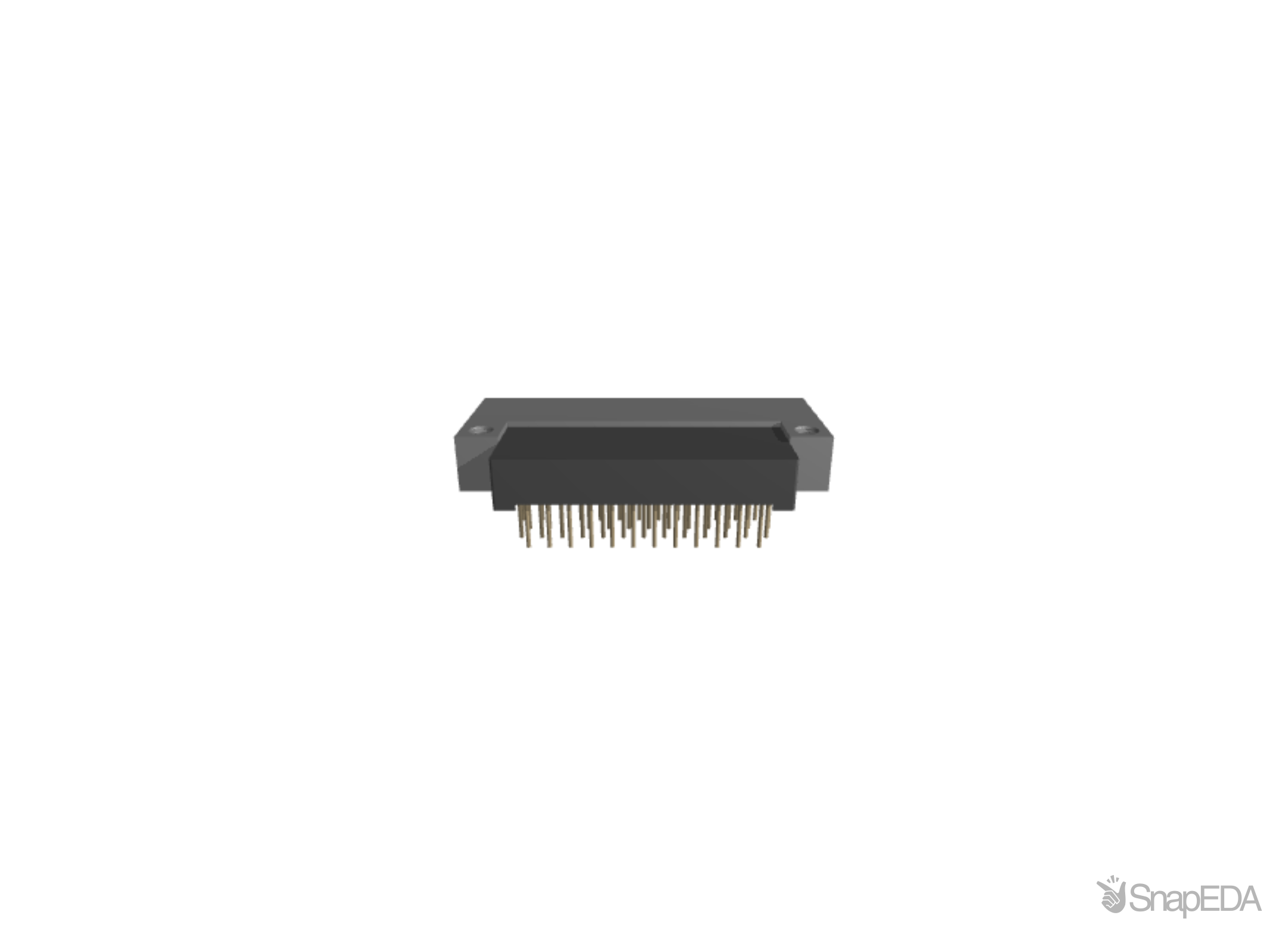

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the A29400-051
| Part Name | A29400-051 |
| Manufacturer | Omnetics |
| HTS Code | 8536.69.4040 |
| Mounting Type | Through Hole, Right Angle |
| Package | Connector |
| Series | Nano-D |
| CAGE Code | 61873 |
| ECCN Number | EAR99 |
| RoHS | True |
| RoHS Compliant | {u'is_url': False, u'value': False} |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
