A750KK337M1CAAE014

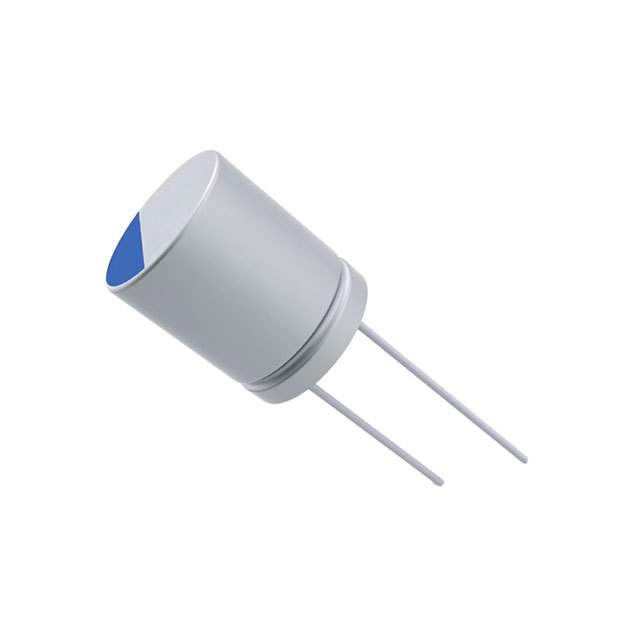

CAP Alum Poly 330µF 20% 16V Single-ended | KEMET A750KK337M1CAAE014
Availability: In Stock
Package Type: RADIAL
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the A750KK337M1CAAE014 by Yageo and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the A750KK337M1CAAE014
| Part Name | A750KK337M1CAAE014 |
| Manufacturer | KEMET |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diameter | 8 (mm) |
| Ripple Current (A) | 5 (A) |
| Dimensions | 8 (Dia) x 8 (mm) |
| Mounting Type | Through Hole |
| Tolerance | ±20 (%) |
| Series | A750 |
| Dissipation Factor | 12 (%) |
| Height | 8 (mm) |
| Capacitance | 330 (µF) |
| Depth | 8 (mm) |
| Dielectric Material Family | Aluminium |
| Equivalent Series Resistance | 14 (mΩ) |
| Leakage Current (A) | 1.056 mA |
| Electrolyte Type | Solid |
| Lifetime | 2000 (h) |
| Lead Pitch | 3.5 (mm) |
| Maximum Operating Temperature | +105 (°C) |
| Technology | Polymer |
| Minimum Operating Temperature | -55 (°C) |
| Polarised | Polar |
| Voltage (V) | 16 (V dc) |
