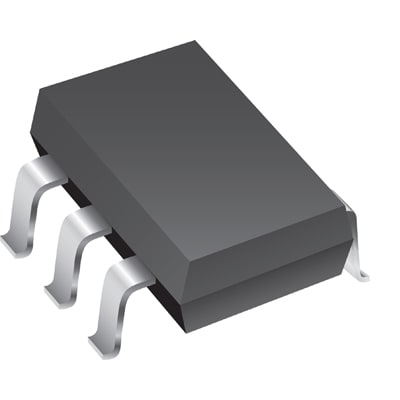

CDSOT23-SRV05-4
A 5V, 30A, 500W, 4 Lines, SOT23-6 packaged, Diode Array | Bourns CDSOT23-SRV05-4
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the CDSOT23-SRV05-4 by Bourns and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the CDSOT23-SRV05-4
| Part Name | CDSOT23-SRV05-4 |
| Manufacturer | Bourns |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Peak Pulse Current (A) | 30 (A) |
| Maximum Reverse Stand-Off Voltage (V) | 5 (V) |
| Dimensions | 3.05 x 1.75 x 1.3 (mm) |
| Minimum Breakdown Voltage (V) | 6 (V) |
| Direction Type | Uni-Directional |
| Diode Configuration | Complex Array |
| Maximum Reverse Leakage Current (A) | 5 (µA) |
| Esd Protection | Yes |
| Height | 1.3 (mm) |
| Width | 1.75 (mm) |
| Length | 3.05 (mm) |
| Package Type | SOT-23 |
| Number Of Elements Per Chip | 4 |
| Minimum Operating Temperature | -55 °C |
| Mounting Type | Surface Mount |
| Maximum Clamping Voltage (V) | 15 (V) |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 6 |
| Peak Pulse Power Dissipation | 500 (W) |
| Test Current (A) | 1 (mA) |
Inventory for the CDSOT23-SRV05-4 by Bourns from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
|
Visit Site | |
|
★ Featured
|
3,000
|
540 x $0.56
|
Visit Site | |
| Arrow Asia |
7,527
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Buerklin |
|
12,000 x $0.48
|
Visit Site | |
| Farnell UK |
2,042
|
|
Visit Site | |
| Newark |
4,903
|
|
Visit Site | |
| RS UK |
1,310
|
|
Visit Site | |
| TTI Europe |
21,000
|
3,000 x $0.43
|
Visit Site | |
| Verical |
7,527
|
|
Visit Site | |
| element14 Singapore |
2,042
|
|
Visit Site |
Related Questions
Orcad Allegro 16.6 import error
(------------------------------------------------------------ ---------) ( ... (more)
Added 10Â years, 7Â months ago.
No issues have been reported for the CDSOT23-SRV05-4
If you experienced any issues with the symbol or footprint, please report it.
